J2 Track 120V Dual Circuit Track Section

Specifications

Order Number:
system type model & size finish
J2 T4 - 4' BK - Black
J2 T4 - 4' WT - White
J2 T8 - 8' BK - Black
J2 T8 - 8' WT - White
J2 T12 - 12' BK - Black
J2 T12 - 12' WT - White

Features

  • Power: 1920W
  • Input: 120 VAC, 50/60Hz
  • Construction: Aluminum extrusion with copper bus wire
  • May be field cut and easily installed on a variety of surfaces
  • End caps and mounting hardware included
  • Retrofits into many popluar track systems on the market today
  • Compatible with all JHT and JTK series track luminaires
  • Enables the use of two separately switched circuits on one section or run of track
  • Saves on installation costs by eliminating the need for long separate feed run
  • Each circuit is rated at 20A and allows the control of two individual sets of fixtures
  • Not recommended for dimming on both circuits. If two circuit dimming is required use W track as alternate

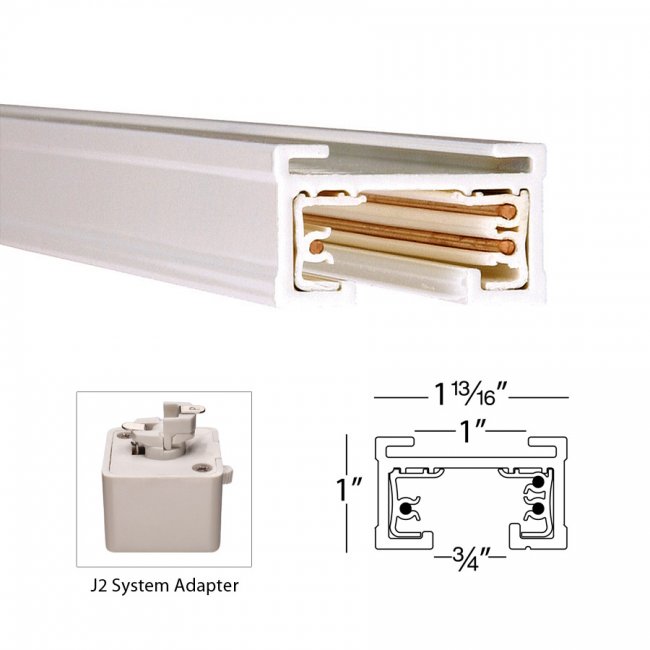

Line Drawing

Components
