W Track Surface Mount Track Sections

Specifications

Order Number:
model & size & voltage finish
WHT4 - 4' - 277 VAC BK - Black
WHT4 - 4' - 277 VAC PT - Platinum
WHT4 - 4' - 277 VAC WT - White
WHT8 - 8' - 277 VAC BK - Black
WHT8 - 8' - 277 VAC PT - Platinum
WHT8 - 8' - 277 VAC WT - White
WHT12 - 12' - 277 VAC BK - Black
WHT12 - 12' - 277 VAC PT - Platinum
WHT12 - 12' - 277 VAC WT - White
WT4 - 4' - 120 VAC BK - Black
WT4 - 4' - 120 VAC PT - Platinum
WT4 - 4' - 120 VAC WT - White
WT8 - 8' - 120 VAC BK - Black
WT8 - 8' - 120 VAC PT - Platinum
WT8 - 8' - 120 VAC WT - White
WT12 - 12' - 120 VAC BK - Black
WT12 - 12' - 120 VAC PT - Platinum
WT12 - 12' - 120 VAC WT - White

Features

  • Power: Max Per Circuit: 1920W, Max Per Circuit: 4432W
  • Input: 120 VAC, 277 VAC, 50/60Hz
  • Construction: Solid copper alloy bus bars in an extruded aluminum with a rectangular cross-sectional area of 4.2 mm
  • Heavy duty architectural grade track with two independently controllable circuits.
  • Operating Current: Each circuit is rated 20A (2 x 20A = 40A max)

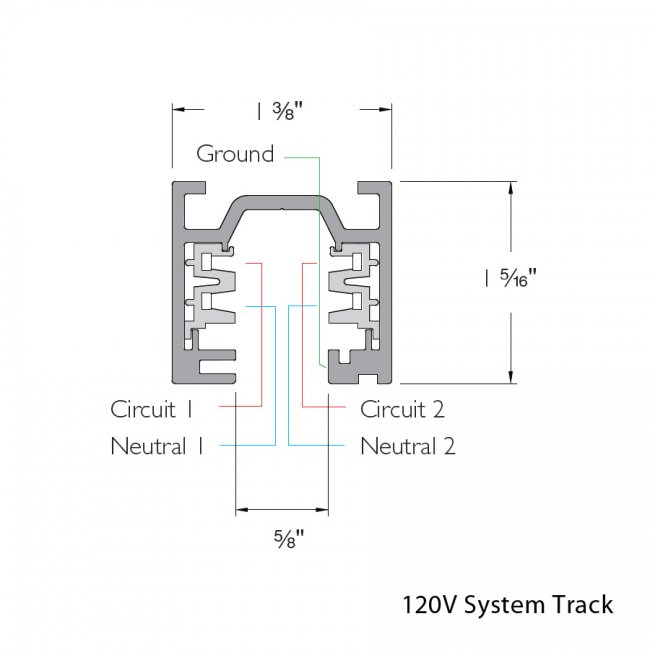

Line Drawing

Components
