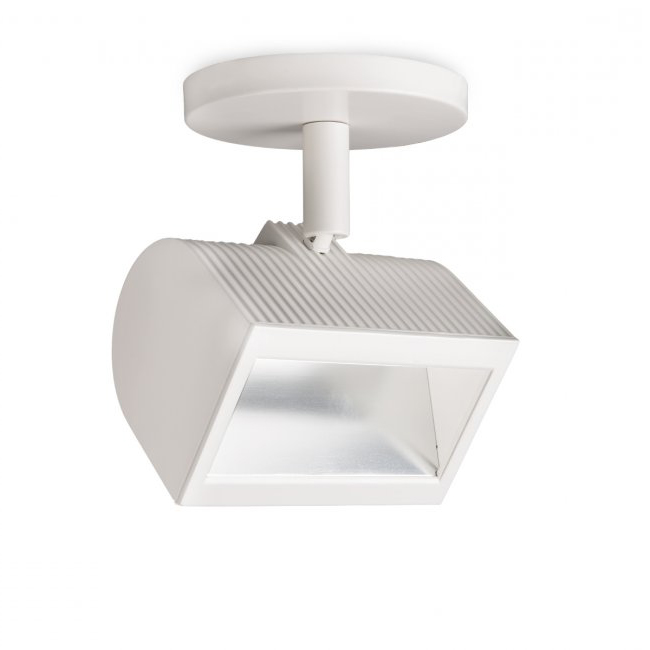

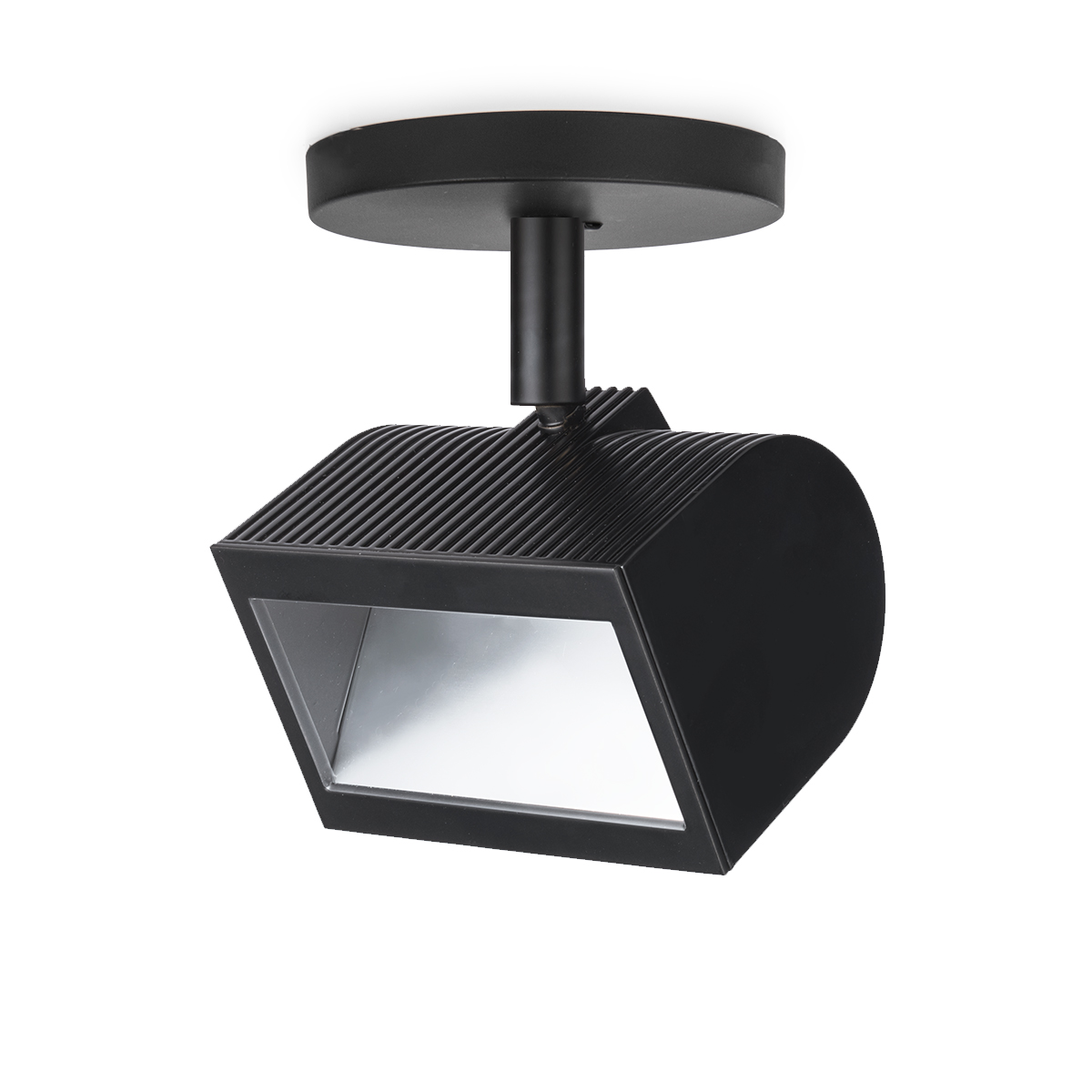

Wall Wash 3020W 20W Monopoint Luminarie

Specifications

Order Number:
system type & voltage model color temp & cri lumens finish
MO - 120 VAC 3020W 927 - 2700K - 90 885 BK - Black
MO - 120 VAC 3020W 927 - 2700K - 90 885 WT - White
MO - 120 VAC 3020W 930 - 3000K - 90 925 BK - Black
MO - 120 VAC 3020W 930 - 3000K - 90 925 WT - White
MO - 120 VAC 3020W 935 - 3500K - 90 1030 BK - Black
MO - 120 VAC 3020W 935 - 3500K - 90 1030 WT - White
MO - 120 VAC 3020W 940 - 4000K - 90 1035 BK - Black
MO - 120 VAC 3020W 940 - 4000K - 90 1035 WT - White

Features

  • Delivered Lumens: Up to 1035lm
  • 2700K
    3500K
    4000K
    3000K
    2700K, 3500K, 4000K, 3000K
  • 2700K, 3000K, 3500K, 4000K
  • CRI: 90
  • Power: 20W
  • Input: 120 VAC, 50/60Hz
  • ELV Dimming: 100-5%
  • Rated Life: 60000 Hours
  • Construction: Die-cast aluminum
  • Asymmetrical beam distribution for even wall illumination
  • 350° horizontal rotation and 90° vertical aiming
  • Economical peformance luminaire with integral LED and driver
  • Driver concealed within the fixture
  • Can be mounted on ceiling or wall in all orientations

Line Drawing
