InvisiLED® Lite/Pro/Pro2/Pro3 Remote Power Supply - 60W/96W, 120-277VAC/24VDC

Specifications

Order Number:
model & product l x w x h
PS-24DC-U60R-T - Remote Enclosed Power Supply 100-277VAC Input 24VDC Output 60 Watt 8.81IN x 2.06IN x 1.25IN
PS-24DC-U96R-T - Remote Enclosed Power Supply 100-277VAC Input 24VDC Output 96 Watt 8.81IN x 2.06IN x 1.25IN

Features

  • Input: 100-277 VAC, 50/60Hz
  • ELV Dimming: 100-5%
  • TRIAC Dimming: 100-5%
  • Rated Life: 50000 Hours
  • Short circuit, over current, over voltage, over temperature protection.
  • Dimming with TRAIC/ELV dimmers
  • UL Class 2 Output
  • High Power factor > 0.9, and THD < 20%
  • Class 2 Output
  • FCC Part 15 Class B Compliant

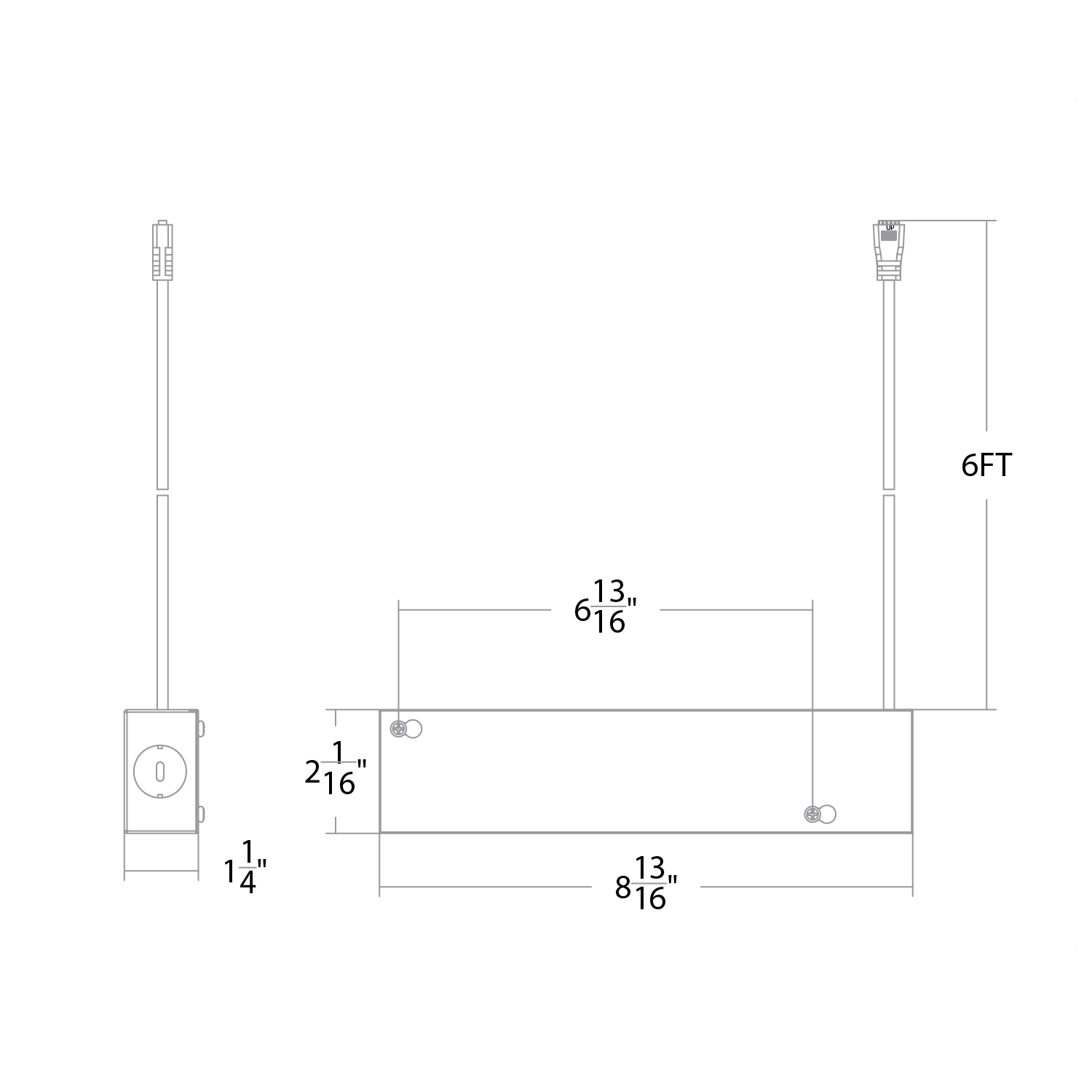

Line Drawing
