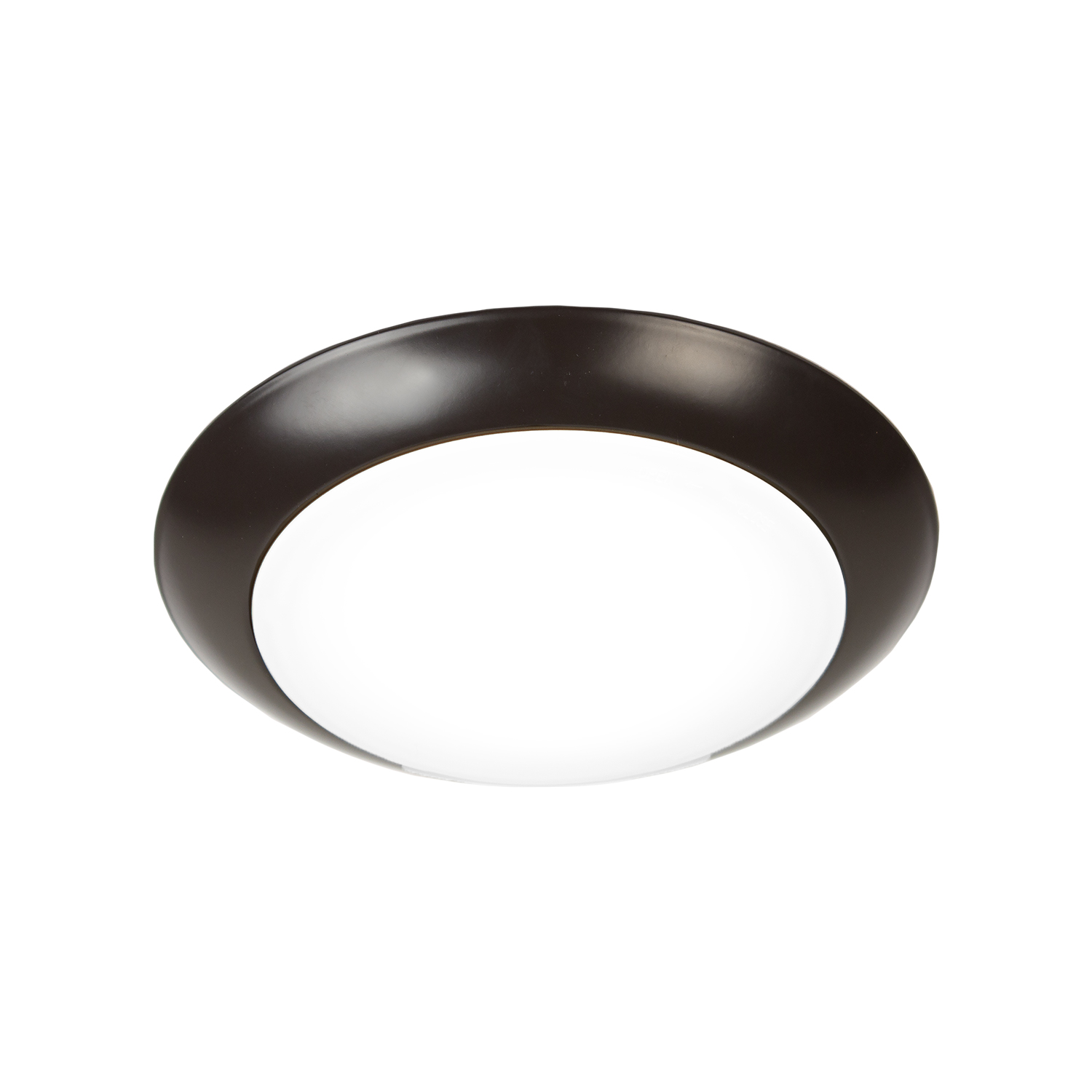

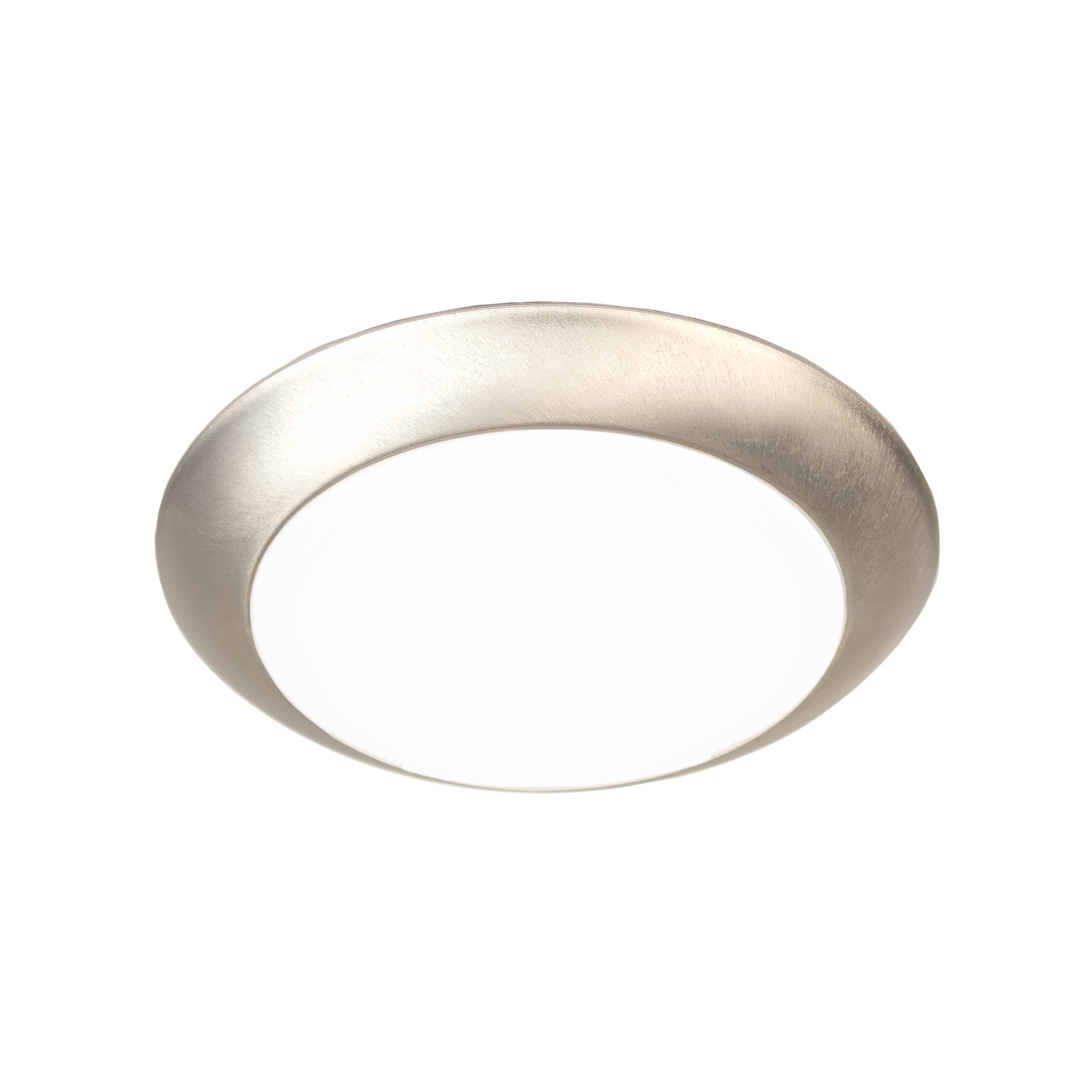

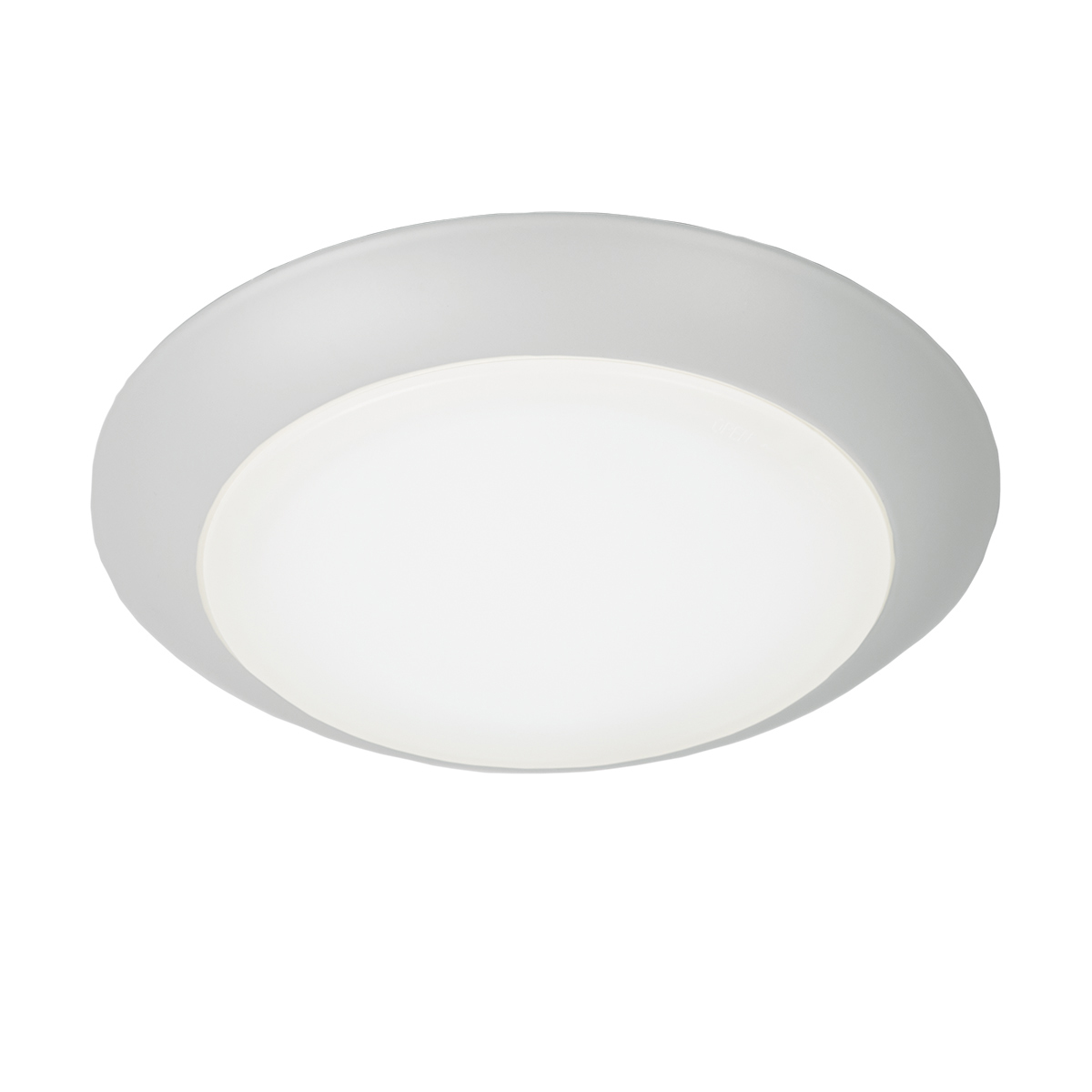

Disc Ceiling and Wall Mount

Specifications Limited Availability, Consult Factory

Limited Availability, Consult Factory Order Number:
model & size color temp & cri watt lumens finish
FM-304 - 4" 930 - 3000K - 90 12W 725 BN - Brushed Nickel
FM-304 - 4" 930 - 3000K - 90 12W 725 BZ - Bronze
FM-304 - 4" 930 - 3000K - 90 12W 725 WT - White
FM-306 - 6" 930 - 3000K - 90 15W 950 BN - Brushed Nickel
FM-306 - 6" 930 - 3000K - 90 15W 950 BZ - Bronze
FM-306 - 6" 930 - 3000K - 90 15W 950 WT - White
FM-306-JB - 6" 930 - 3000K - 90 15W 945 WT - White
FM-306 - 6" 940 - 4000K (6" only) - 90 15W 950 BN - Brushed Nickel
FM-306 - 6" 940 - 4000K (6" only) - 90 15W 950 BZ - Bronze
FM-306 - 6" 940 - 4000K (6" only) - 90 15W 950 WT - White

Features

  • Delivered Lumens: Up to 950lm
  • 4000K (6" only)
    3000K
    4000K (6" only), 3000K
  • 3000K, 4000K (6" only)
  • CRI: 90
  • Power: 12W, 15W
  • Input: 120 VAC, 50/60Hz
  • ELV Dimming: 100-5%
  • Rated Life: 50000 Hours
  • Construction: Die-cast aluminum with white acrylic diffuser
  • Multiple LED array for uniform illumination
  • ACLED driverless technology
  • Can be mounted on ceiling or wall in all orientations

Line Drawing
