Specifications
Order Number:
| model & size | color temp | finish | led watts | led lumens | delivered lumens |
|---|---|---|---|---|---|
| FM-W47206 - 5" | 3000K | BK - Black | 11.9W | 900 | 755 |
| FM-W47206 - 5" | 3000K | WT - White | 11.9W | 900 | 755 |
| FM-W47206 - 5" | 3500K | BK - Black | 11.9W | 925 | 795 |
| FM-W47206 - 5" | 3500K | WT - White | 11.9W | 925 | 795 |
| FM-W47206 - 5" | 4000K | BK - Black | 11.9W | 950 | 758 |
| FM-W47206 - 5" | 4000K | WT - White | 11.9W | 950 | 758 |
Features
- Delivered Lumens: 795lm
- 3000K, 3500K, 4000K
- CRI: 90
- Power: 11.9W
- Input: 120 VAC, 50/60Hz
- ELV Dimming: 100-10%
- TRIAC Dimming: 100-10%
- Rated Life: 54000 Hours
- Construction: Aluminum body, glass diffuser
- Built in color temperature adjustability. Switch from 3000K/3500K/4000K
- Option to pre-select color temperature or adjust in the field
- ACLED driverless technology
- Can be mounted on ceiling or wall in all orientations

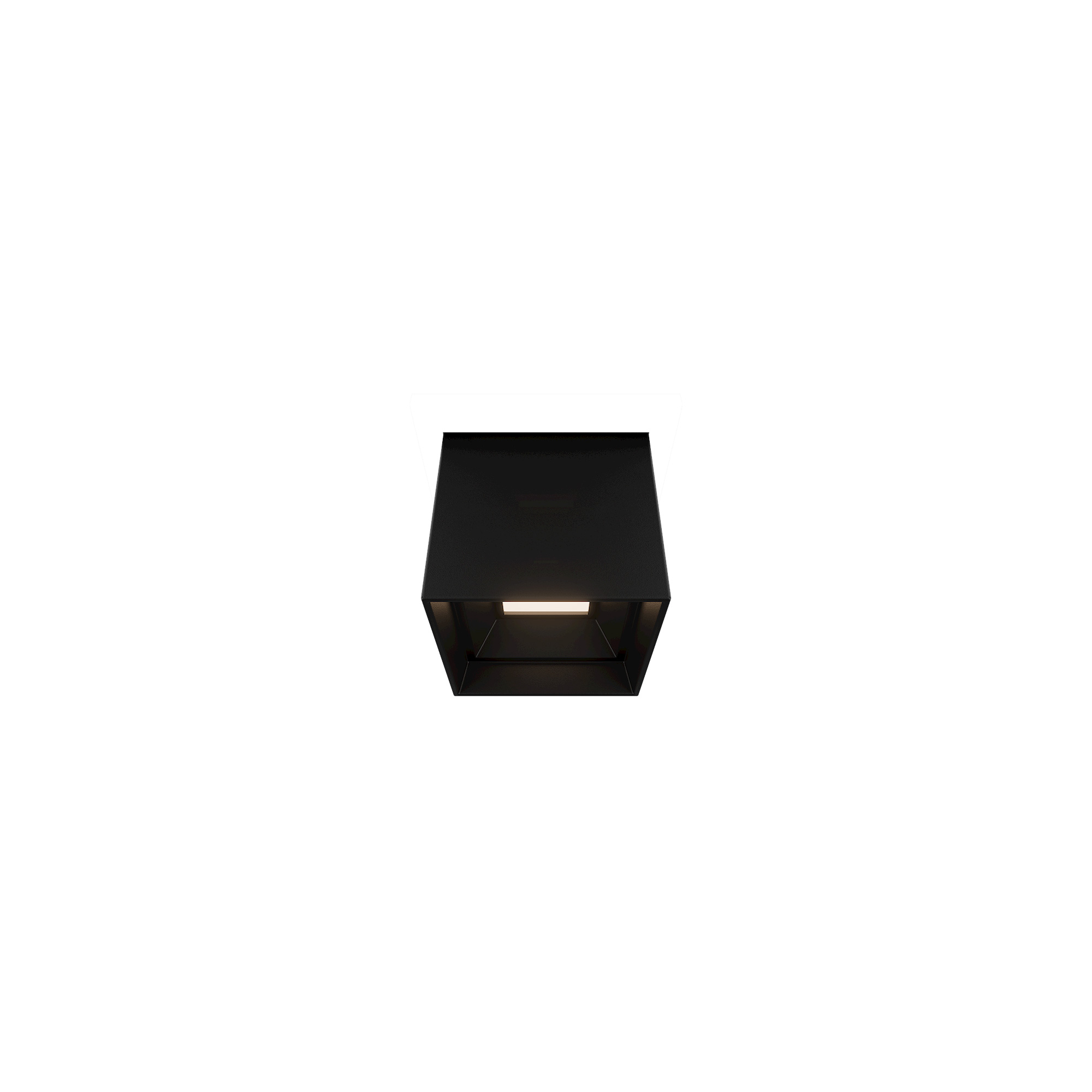

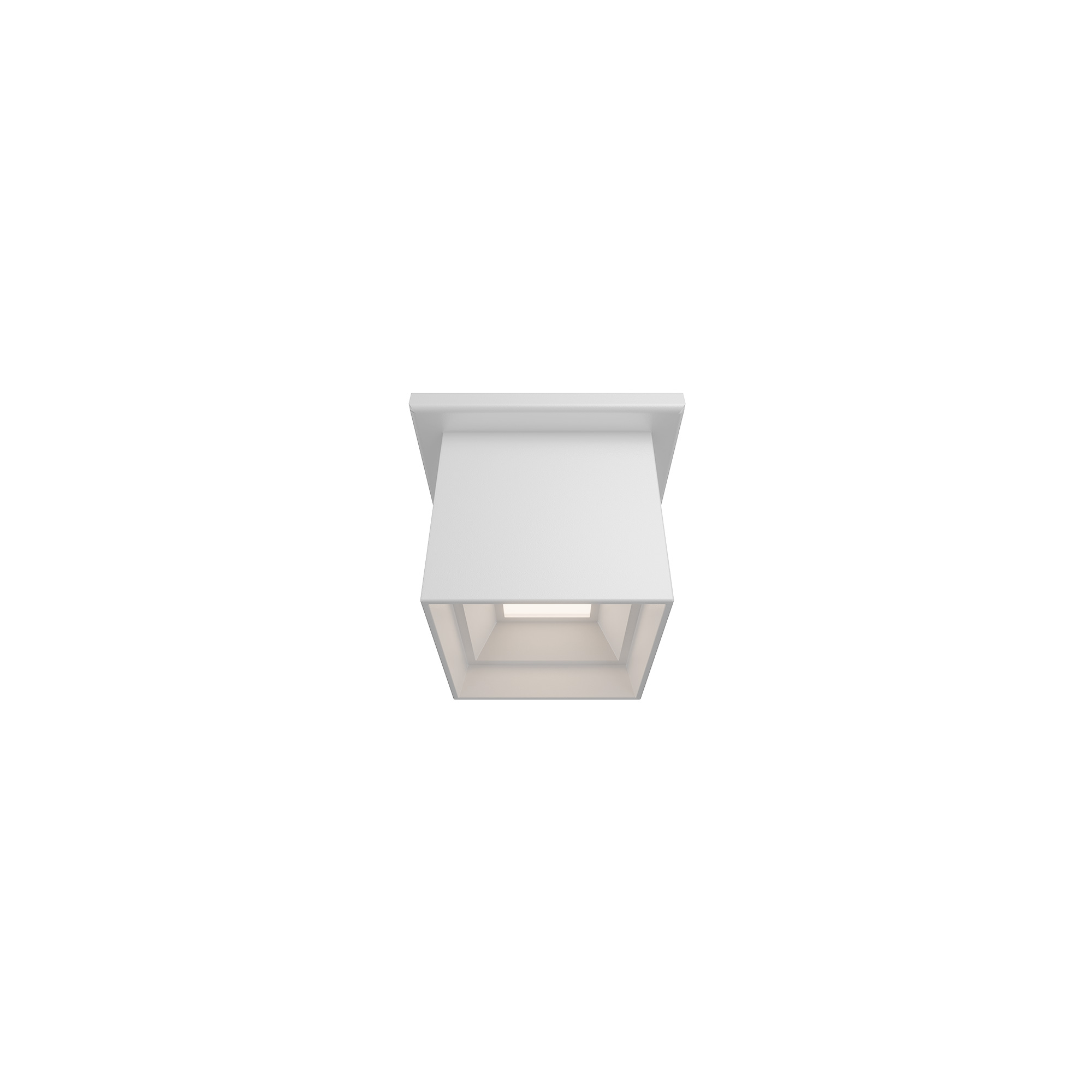

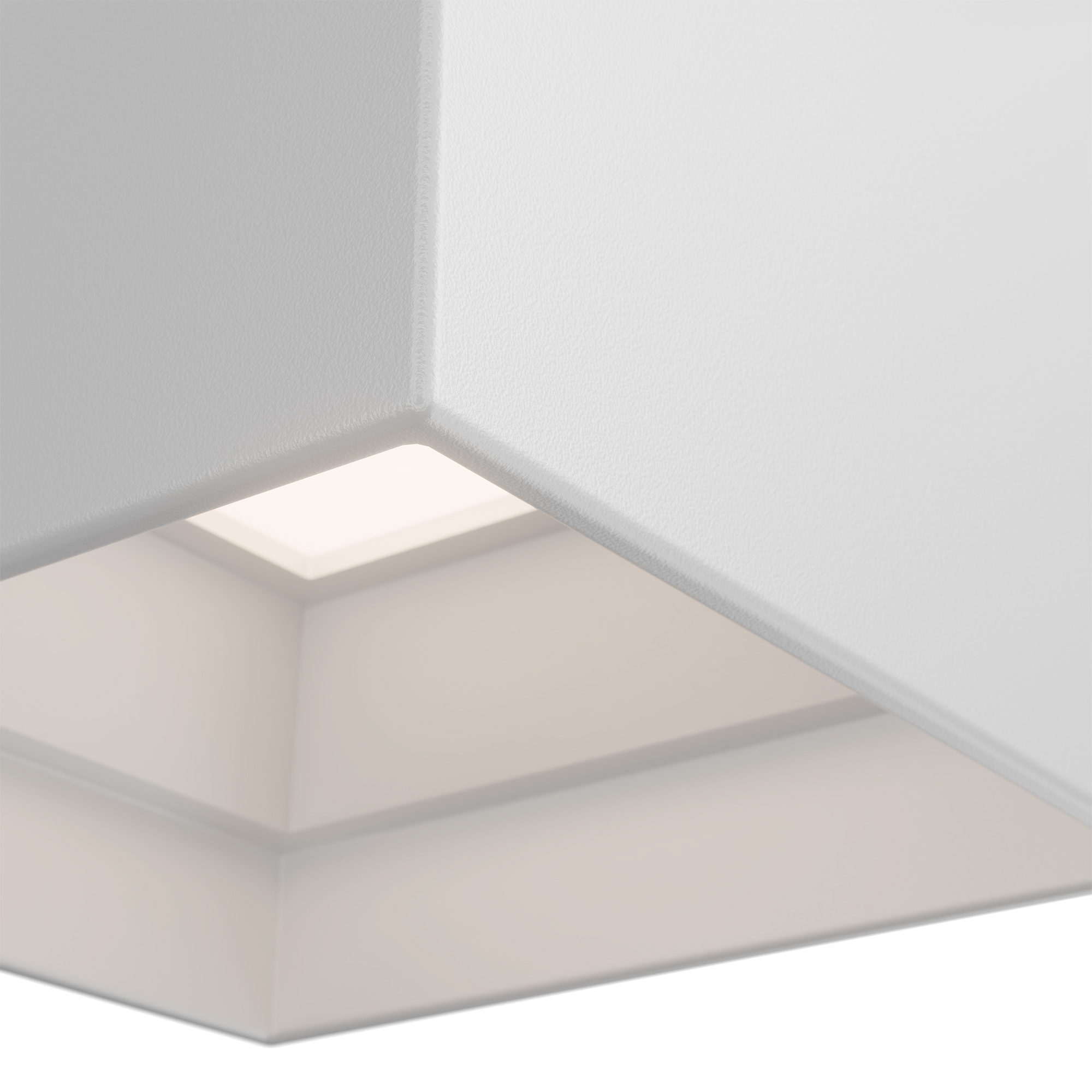

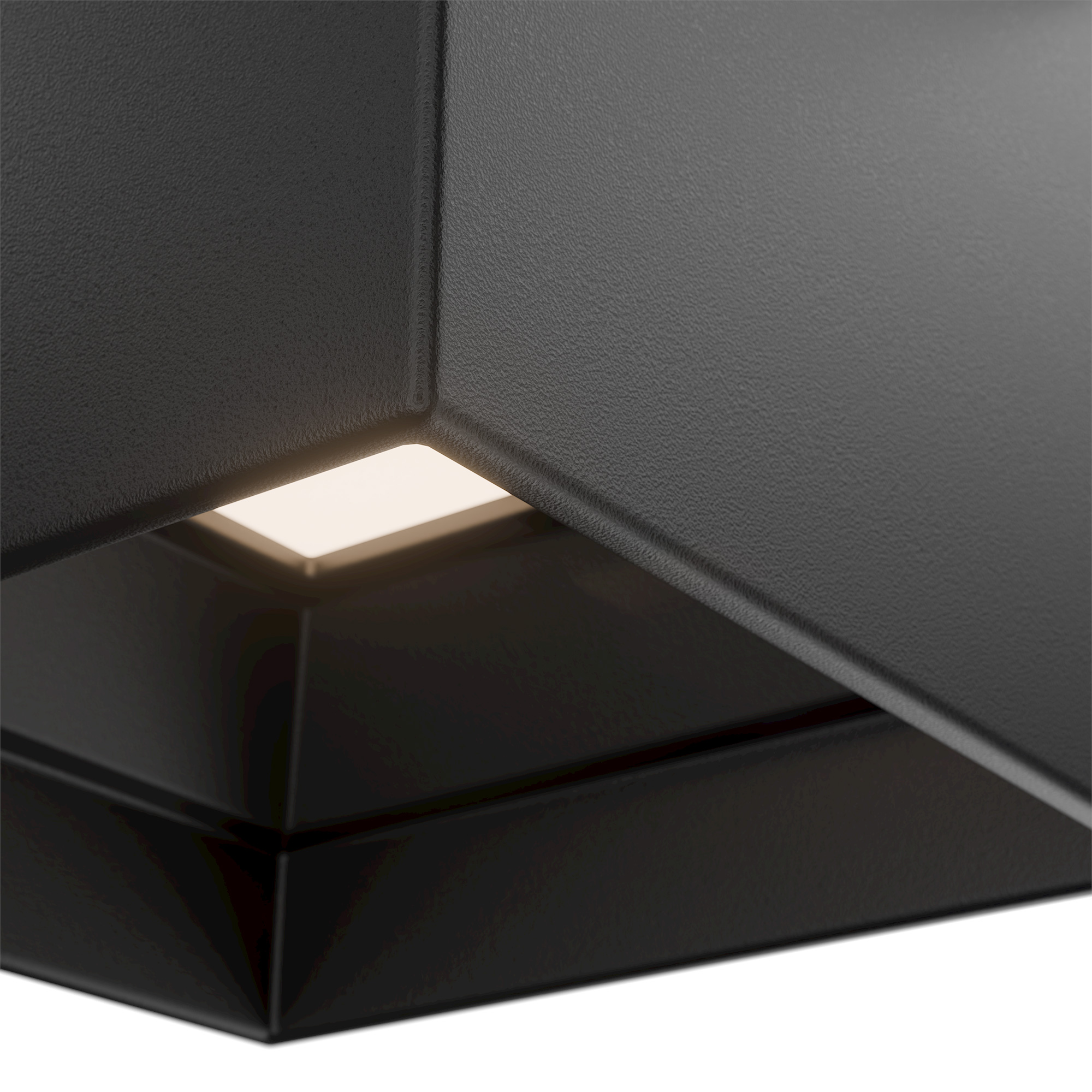

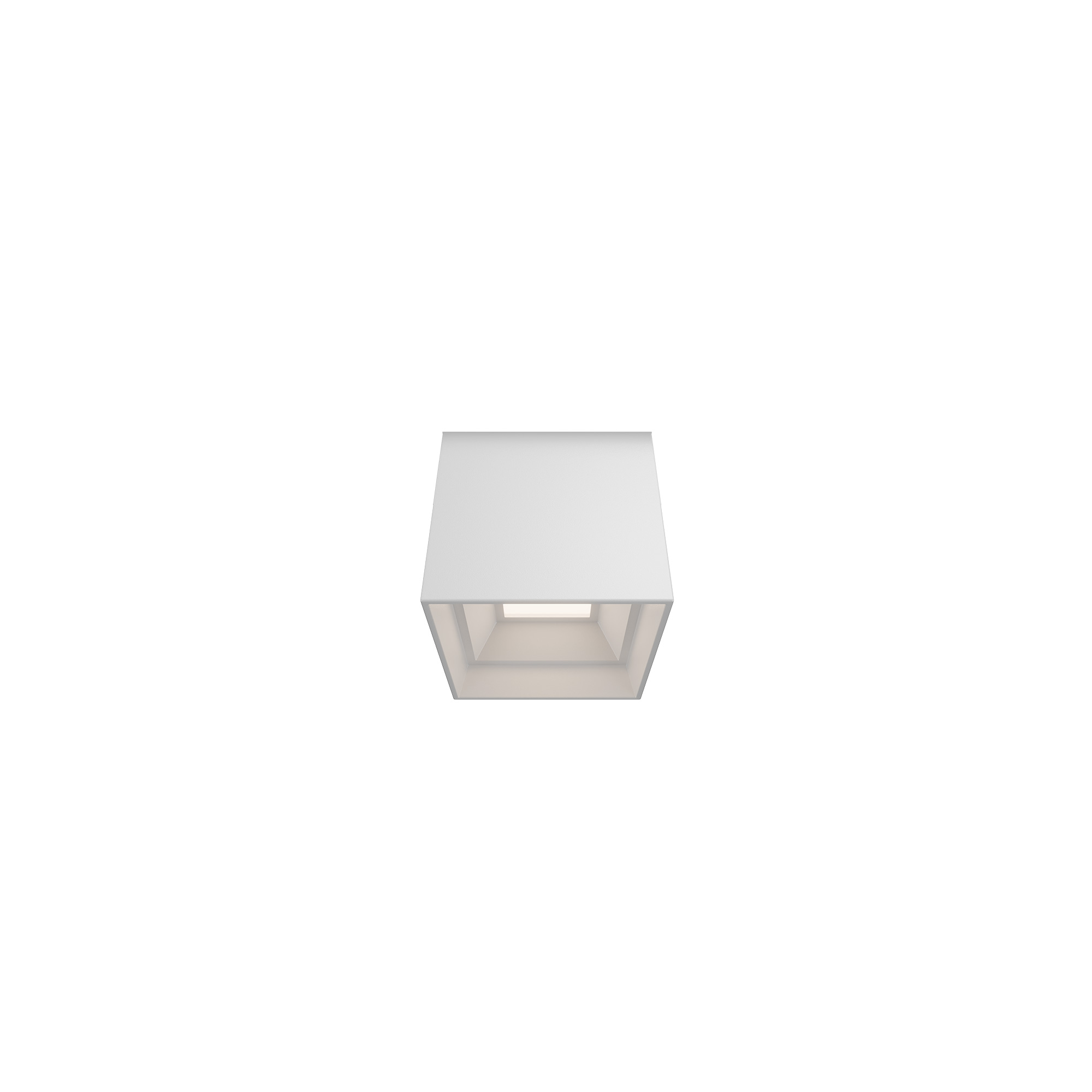

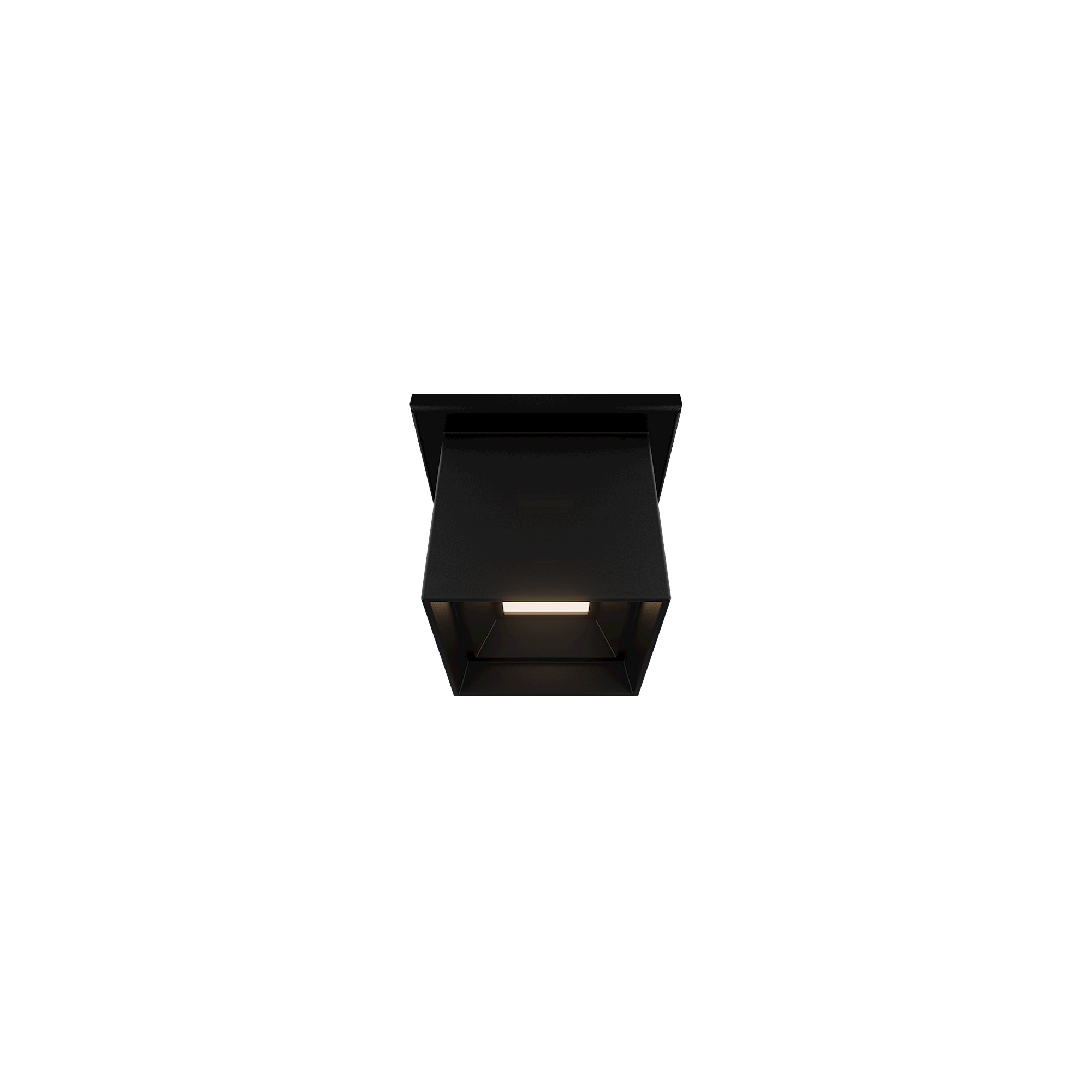

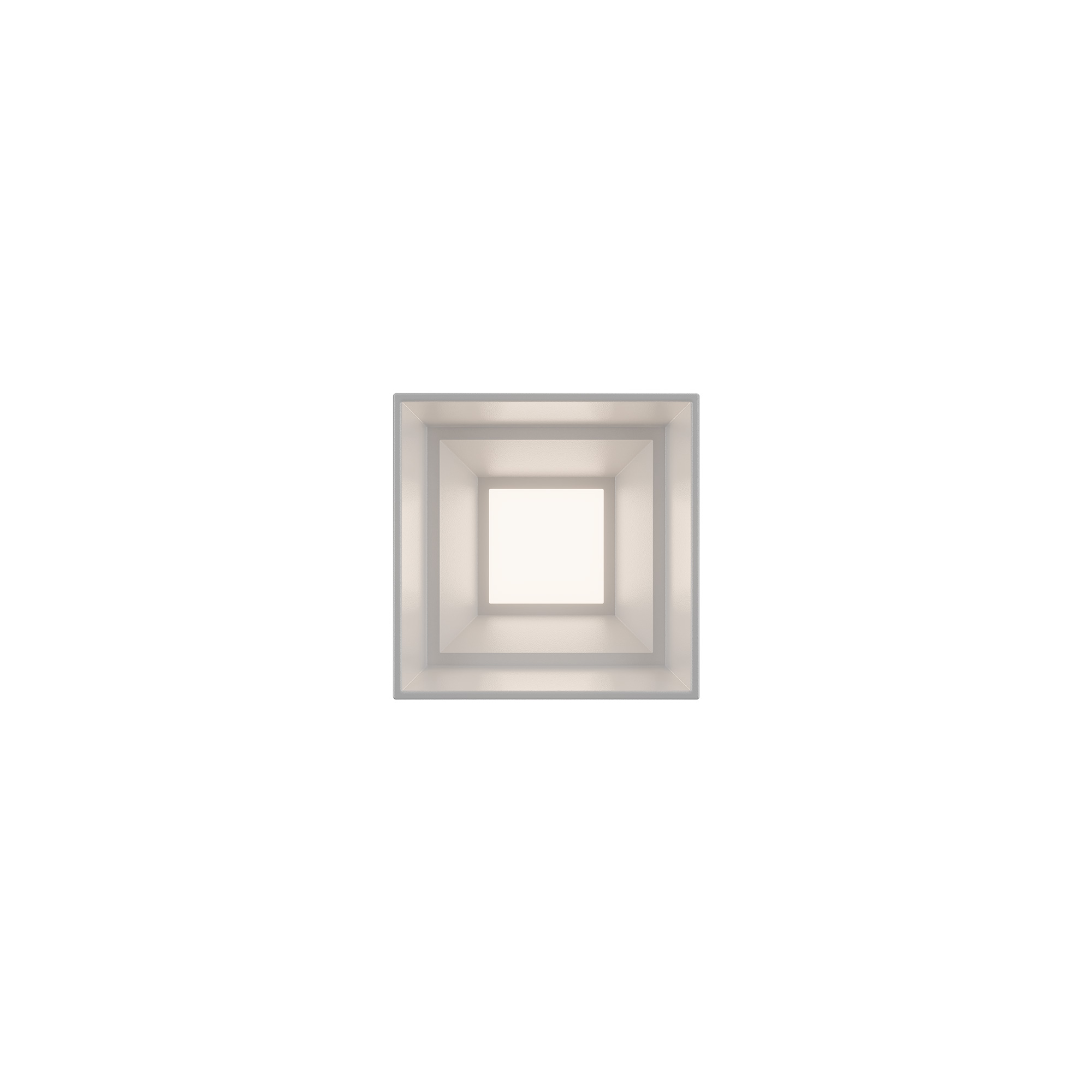

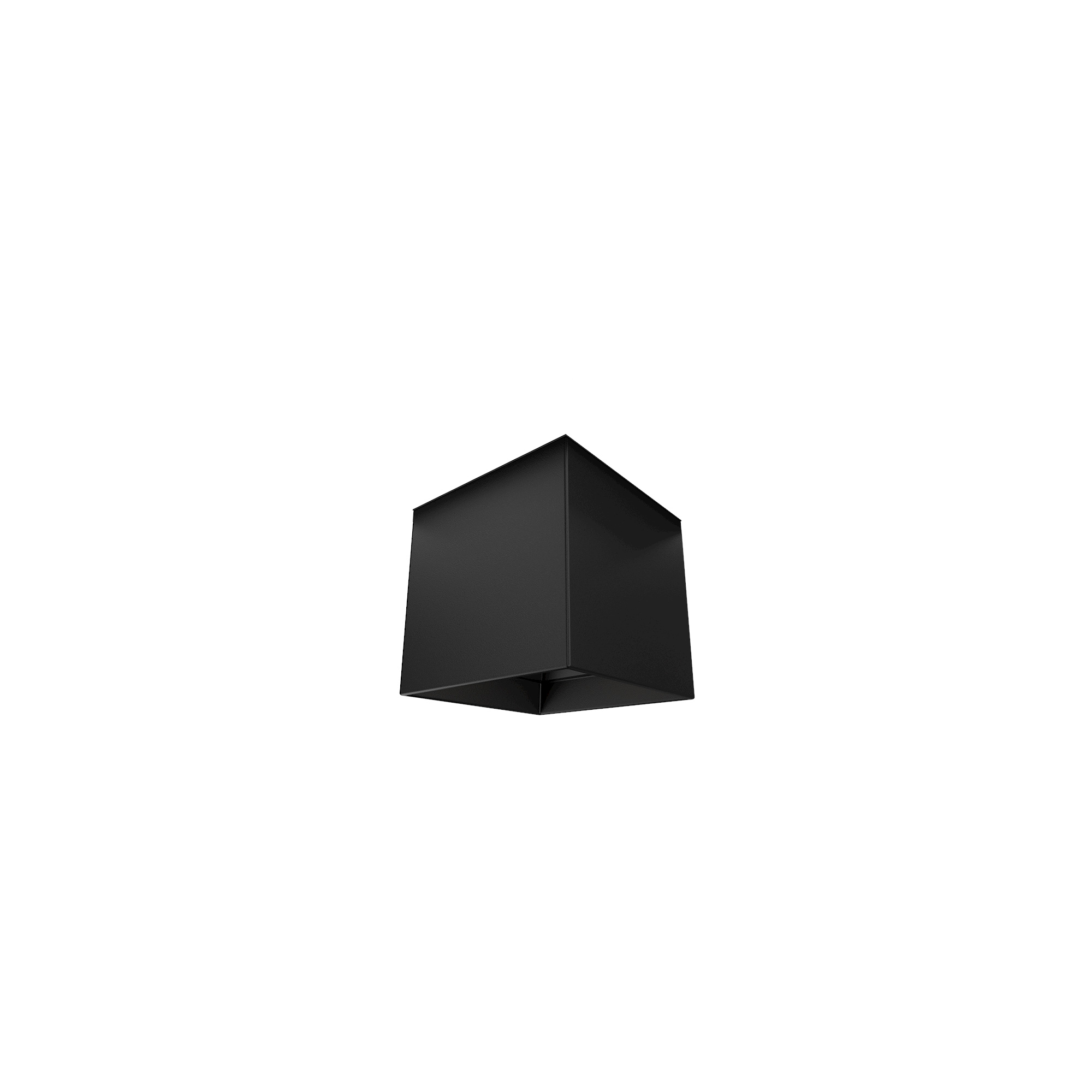

Gallery

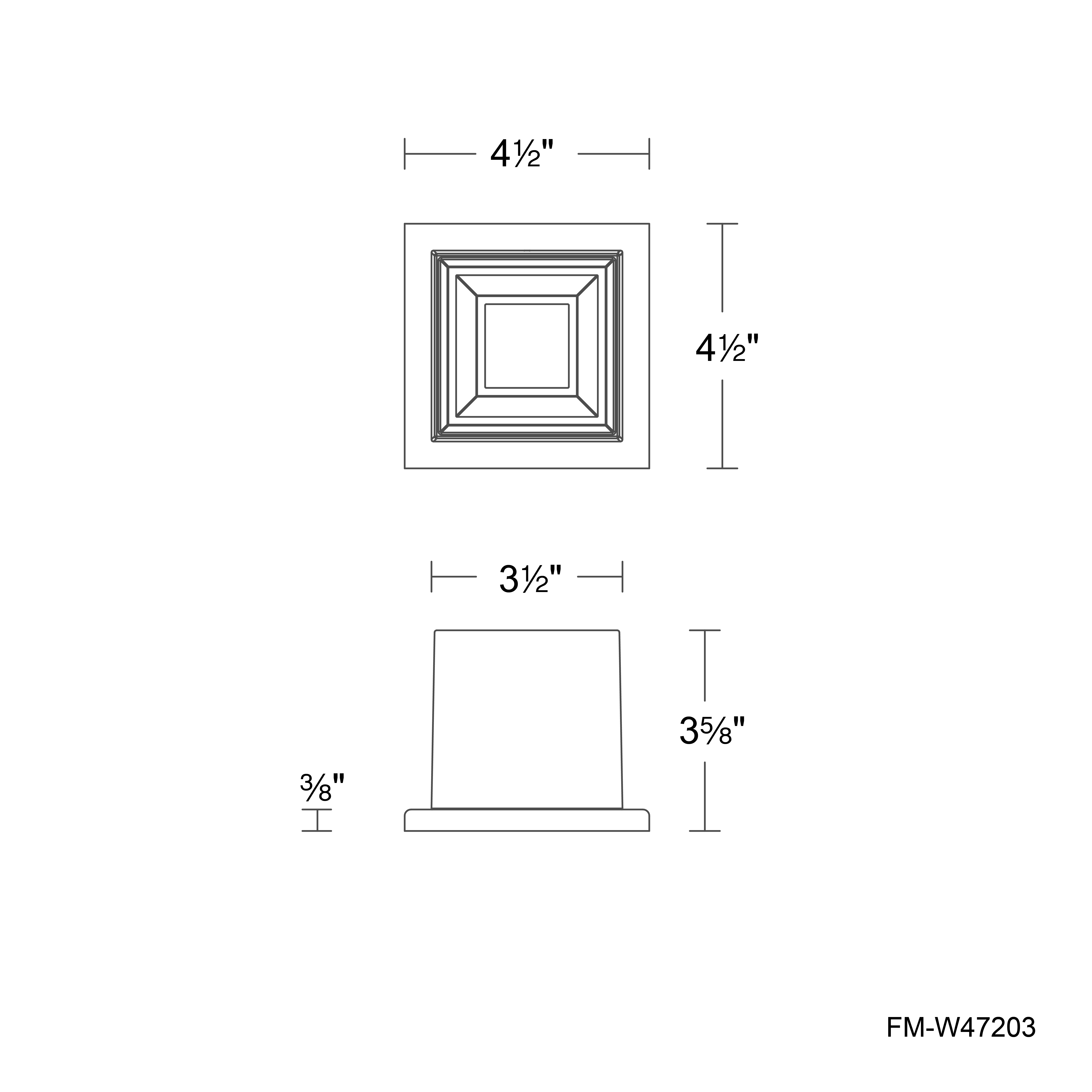

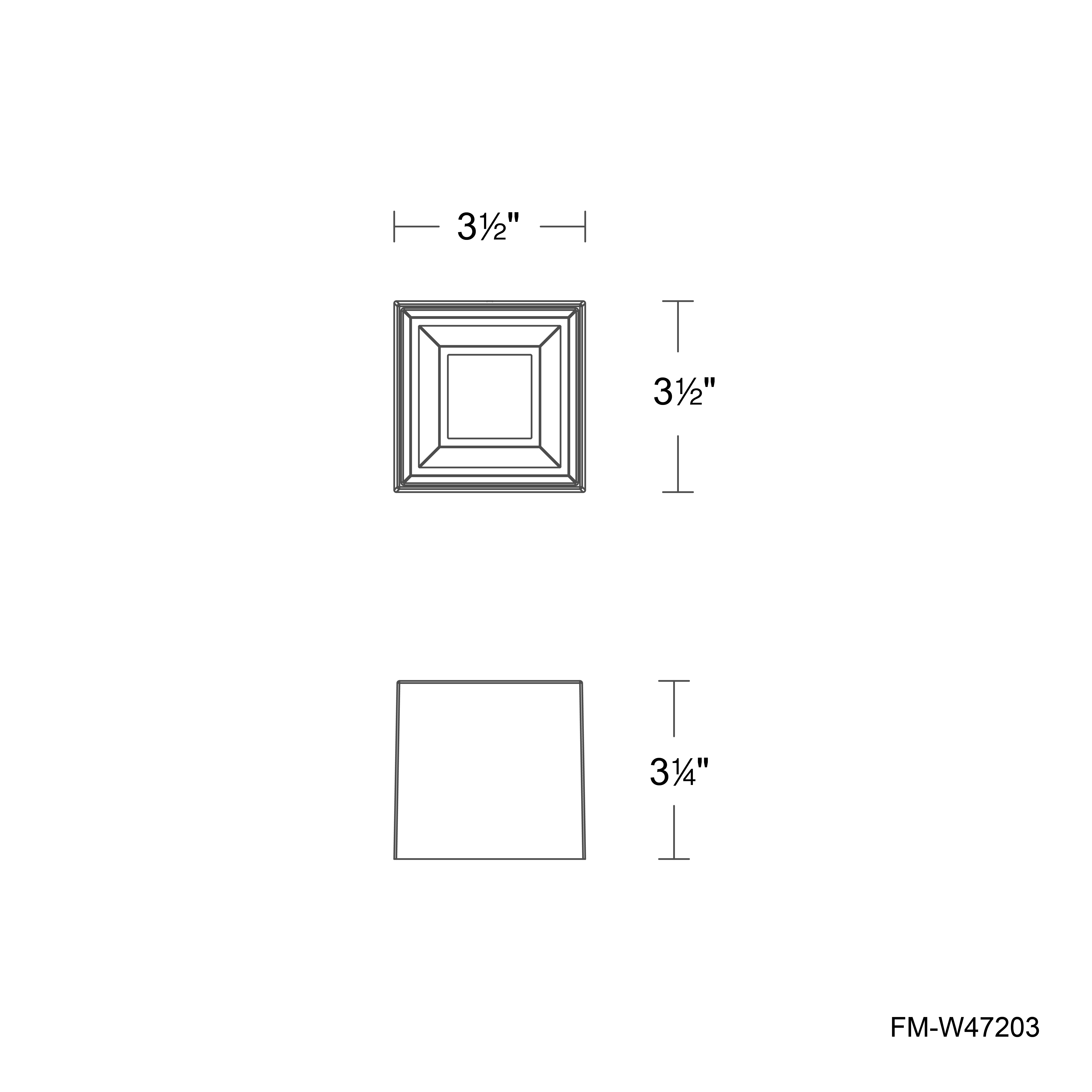

Line Drawing
