Specifications
Order Number:
| model & size | color temp & cri | finish | watt | led lumens | delivered lumens |
|---|---|---|---|---|---|
| FM-21720 - 20" | 3000K - 90 | AL - Brushed Aluminum | 20W | 1680 | 1315 |
| FM-21720 - 20" | 3000K - 90 | BK - Black | 20W | 1680 | 1315 |
| FM-21728 - 28" | 3000K - 90 | AL - Brushed Aluminum | 30W | 2525 | 1720 |
| FM-21728 - 28" | 3000K - 90 | BK - Black | 30W | 2525 | 1723 |
Features
- Delivered Lumens: Up to 1723lm
- 3000K
- CRI: 90
- Power: 20W, 30W
- Input: 120-277 VAC, 50/60Hz
- ELV Dimming: 100-10%
- Rated Life: 50000 Hours
- Construction: Aluminum hardware with etched acrylic diffuser
- Uniquely versatile fixture capable of transforming before your eyes
- Side lit acrylic diffuser with discretely hidden LEDs.
- downrods can be removed to mount as a ceiling fixture or wall sconce
- Three 12" and one 6" downrods included (additional downrods available)
- Driver installed within the Junction Box, driver dimension: 2.76" x 1.26" x 1.18"
- Can be mounted on ceiling or wall in all orientations

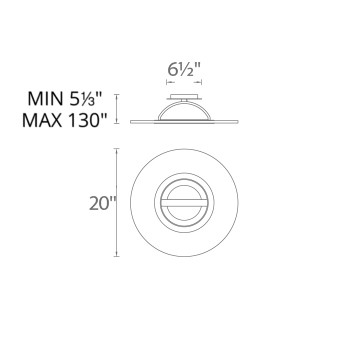

Line Drawing
