Specifications
Retired
Order Number:
| model & size | color temp | finish | led watts | led lumens | delivered lumens |
|---|---|---|---|---|---|
| PD-45747 - 47" | 3000K | AL - Brushed Aluminum | 30W | 1770 | 1190 |
| PD-45747 - 47" | 3000K | BK - Black | 30W | 1770 | 1190 |
Features
- Delivered Lumens: 1190lm
- 3000K
- CRI: 90
- Power: 30W
- Input: 120-277V, 50/60Hz
- ELV Dimming: 100-10%
- Rated Life: 50000 Hours
- Construction: Aluminum hardware with polycarbonate diffuser
- Impossibly tiny at just a half inch tall by a half inch wide
- Adjustable leveler provides offers custom positioning
- Cable suspension carrying low voltage may be field shortened
- Driver installed within the Junction Box, driver dimension: 2.8" x 1.3" x 1.2"

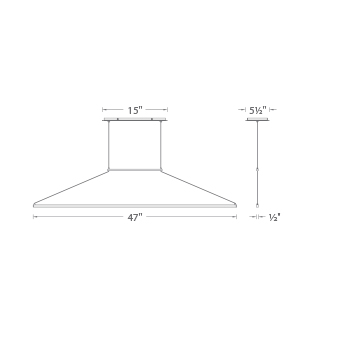

Line Drawing
