Specifications
Order Number:
| model & size | color temp & cri | finish | watt | voltage | led lumens | delivered lumens |
|---|---|---|---|---|---|---|
| WS-W11914 - 14" | 3000K - 90 | BK - Black | 9W | 120-277 VAC | 788 | 445 |
| WS-W11920 - 20" | 3000K - 90 | BK - Black | 15W | 120-277 VAC | 1666 | 758 |
| WS-W11926 - 26" | 3000K - 90 | BK - Black | 20W | 120-277 VAC | 2855 | 1132 |
Features
- Delivered Lumens: Up to 1132lm
- 3000K
- CRI: 90
- Power: 15W, 20W, 9W
- Input: 120-277 VAC, 50/60Hz
- ELV Dimming: 100-10%
- 0-10V Dimming: 100-10%
- TRIAC Dimming: 100-10%
- Rated Life: 50000 Hours
- Construction: Aluminum body with acrylic diffuser
- Front lit etched acrylic panel design
- Driver concealed within the fixture
- Can be mounted on wall vertically or upside down

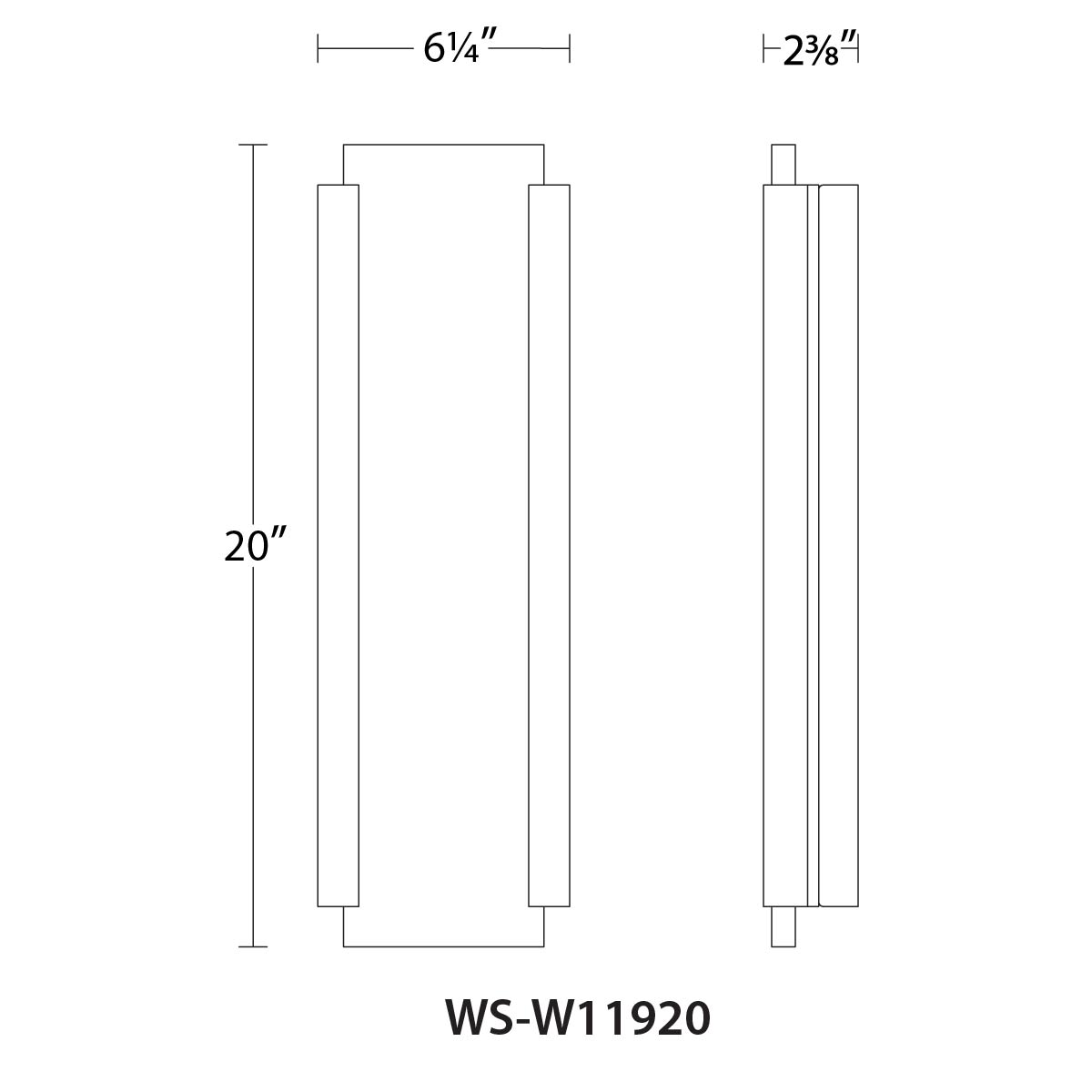

Line Drawing
