FQ 4″ Adjustable Trimless Square

Specifications

Order Number:
model color temp & cri max lumens max cbcp power finish
R4FSAL 927 - 2700K - 90 1595 5110 13W, 19W, 25W, 28W BK - Black
R4FSAL 927 - 2700K - 90 1595 5110 13W, 19W, 25W, 28W DB - Dark Bronze
R4FSAL 927 - 2700K - 90 1595 5110 13W, 19W, 25W, 28W HZ - Haze
R4FSAL 927 - 2700K - 90 1595 5110 13W, 19W, 25W, 28W WT - White
R4FSAL 930 - 3000K - 90 1680 5375 13W, 19W, 25W, 28W BK - Black
R4FSAL 930 - 3000K - 90 1680 5375 13W, 19W, 25W, 28W DB - Dark Bronze
R4FSAL 930 - 3000K - 90 1680 5375 13W, 19W, 25W, 28W HZ - Haze
R4FSAL 930 - 3000K - 90 1680 5375 13W, 19W, 25W, 28W WT - White
R4FSAL WD - 3000K - 1800K - 90 910 2945 19W BK - Black
R4FSAL WD - 3000K - 1800K - 90 910 2945 19W DB - Dark Bronze
R4FSAL WD - 3000K - 1800K - 90 910 2945 19W HZ - Haze
R4FSAL WD - 3000K - 1800K - 90 910 2945 19W WT - White

Features

  • Delivered Lumens: Up to 1680lm
  • CBCP: Up to 5375
  • 2700K
    3000K
    3000K - 1800K
    2700K, 3000K, 3000K - 1800K
  • 2700K, 3000K, 3000K - 1800K
  • CRI: 90
  • Power: 13W, 19W, 25W, 28W
  • Input: 13W, 19W
  • Rated Life: 50000 Hours
  • Construction: Durable die-cast aluminum trim with aluminum heat sink
  • Operating Temp: -4°F to 104°F (-20°C to 40°C)
  • Two-piece die-cast construction
  • Light engine mounted on trim with springs for easy replacement
  • 0-45° vertical tilting and 365° horizontal rotation
  • Center beam alignment retained throughout adjustment range
  • Field changeable beam angle with reflectors provided
  • Accepts one Lens or glare control accessory
  • Refer to specification sheet for lumens and CBCP data

Line Drawing

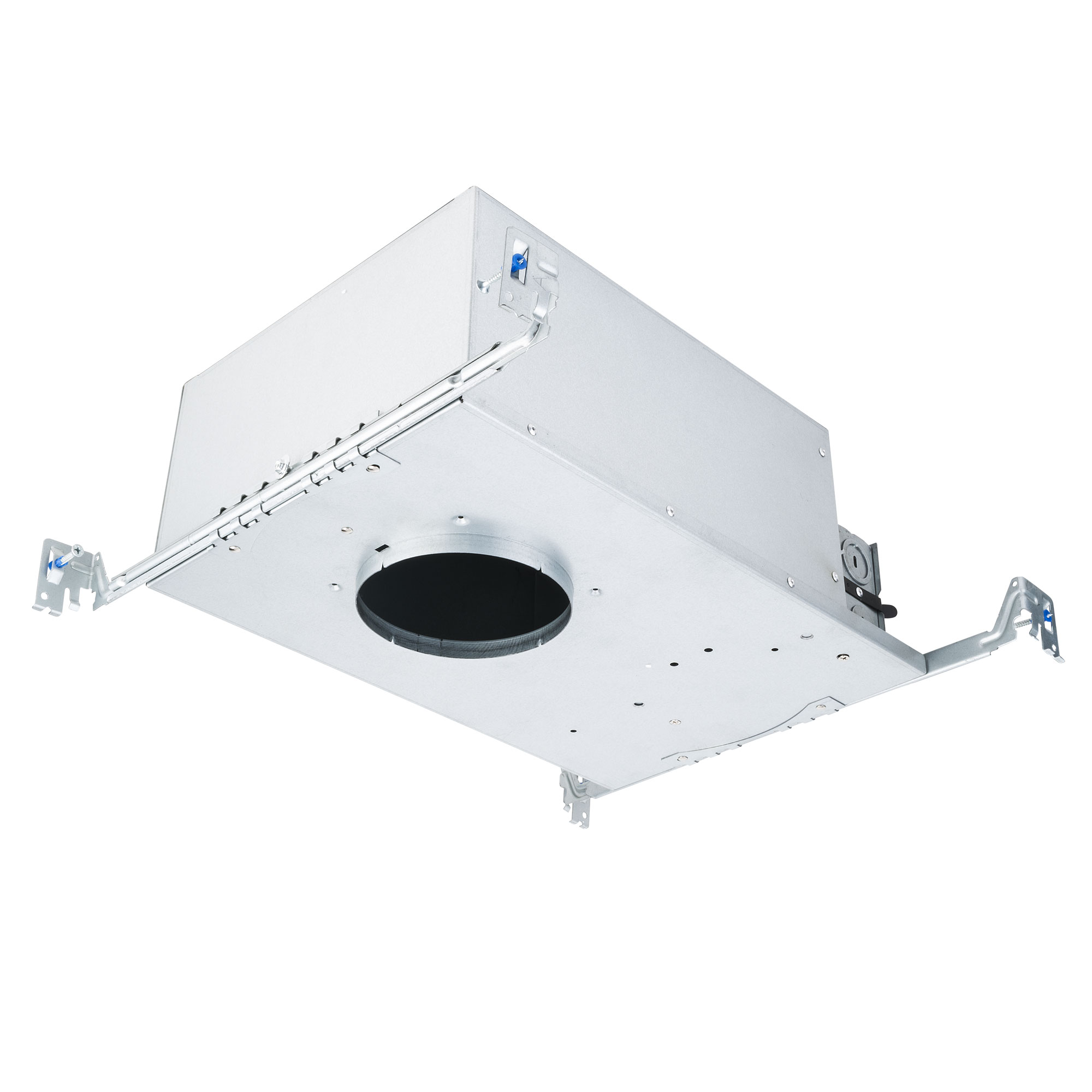

Components
