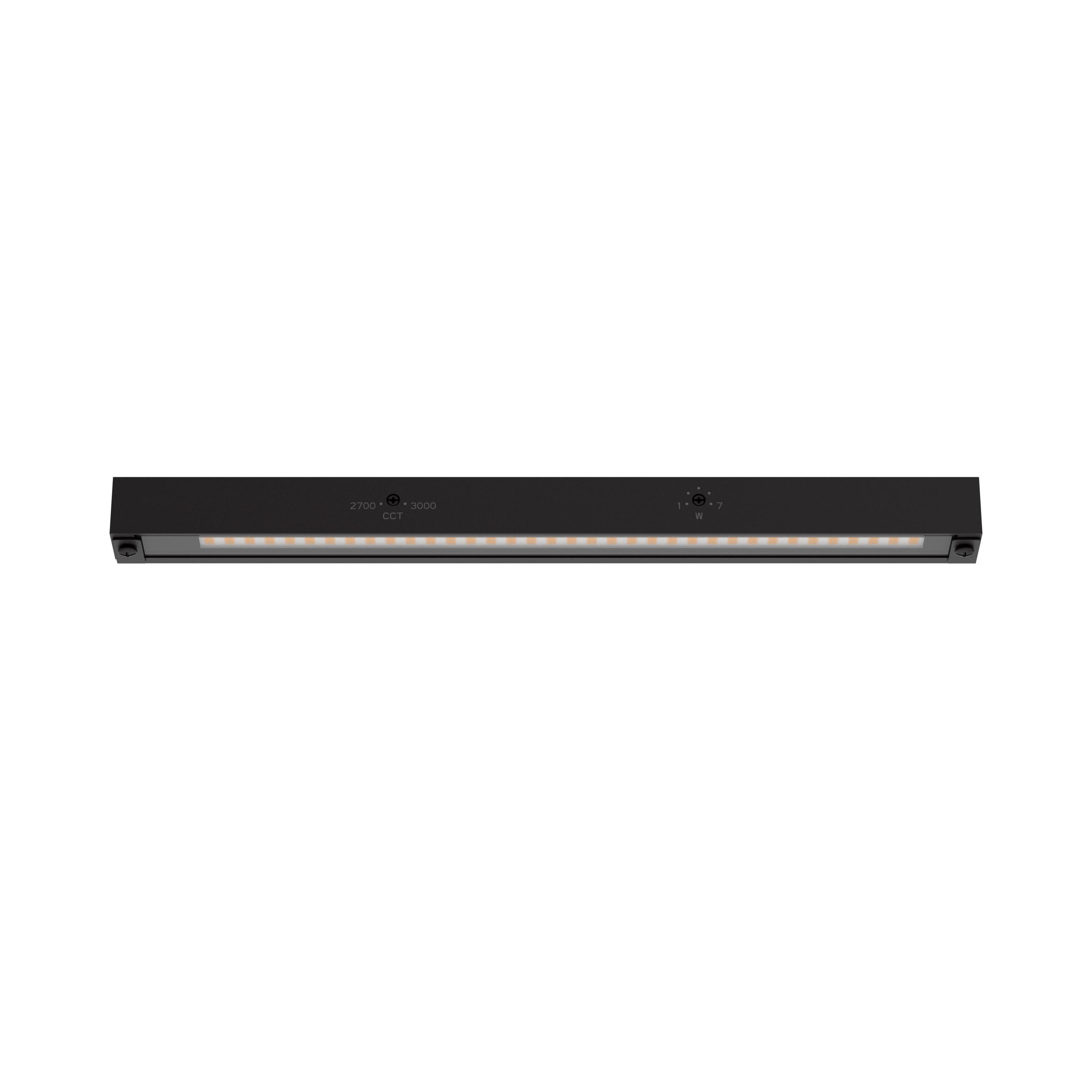

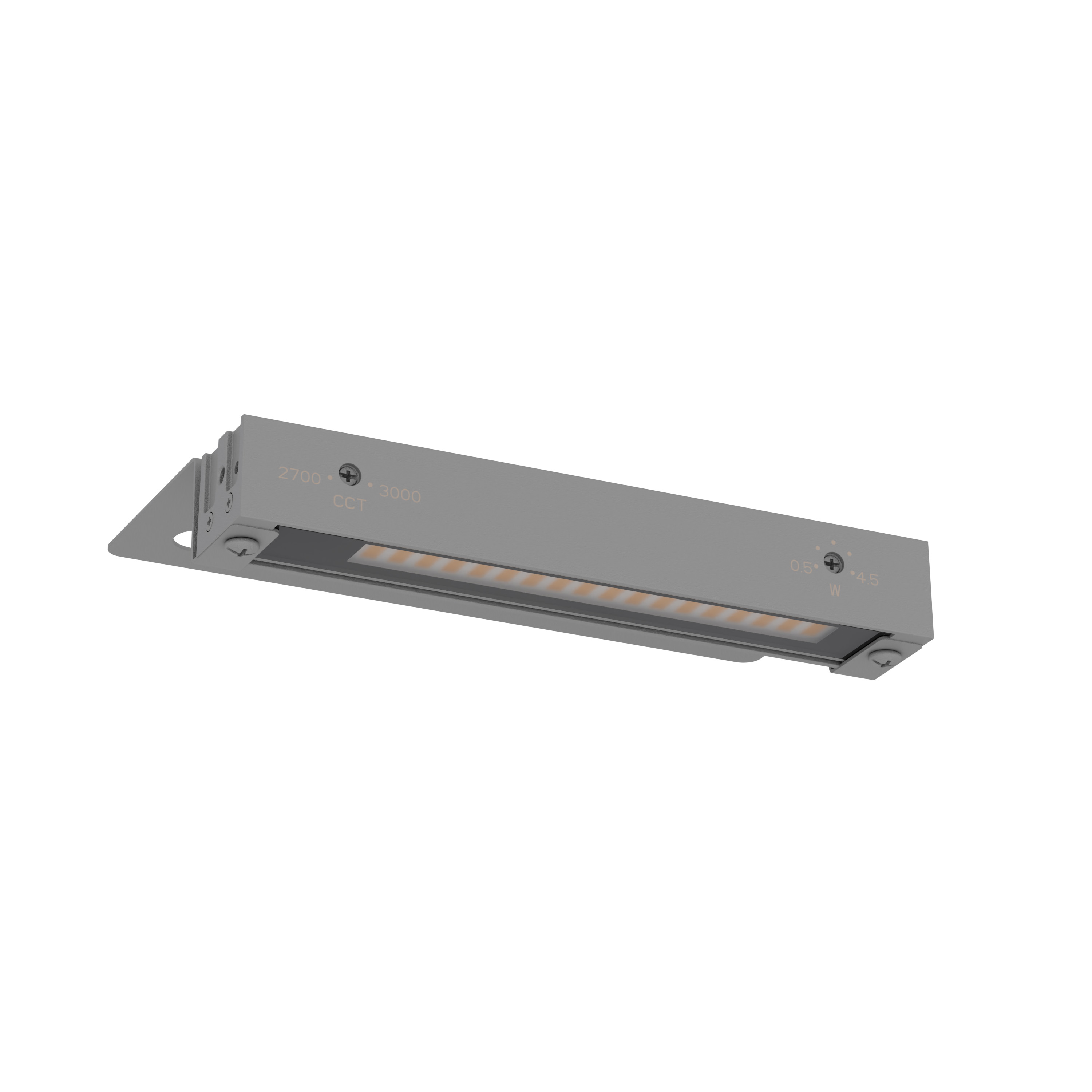

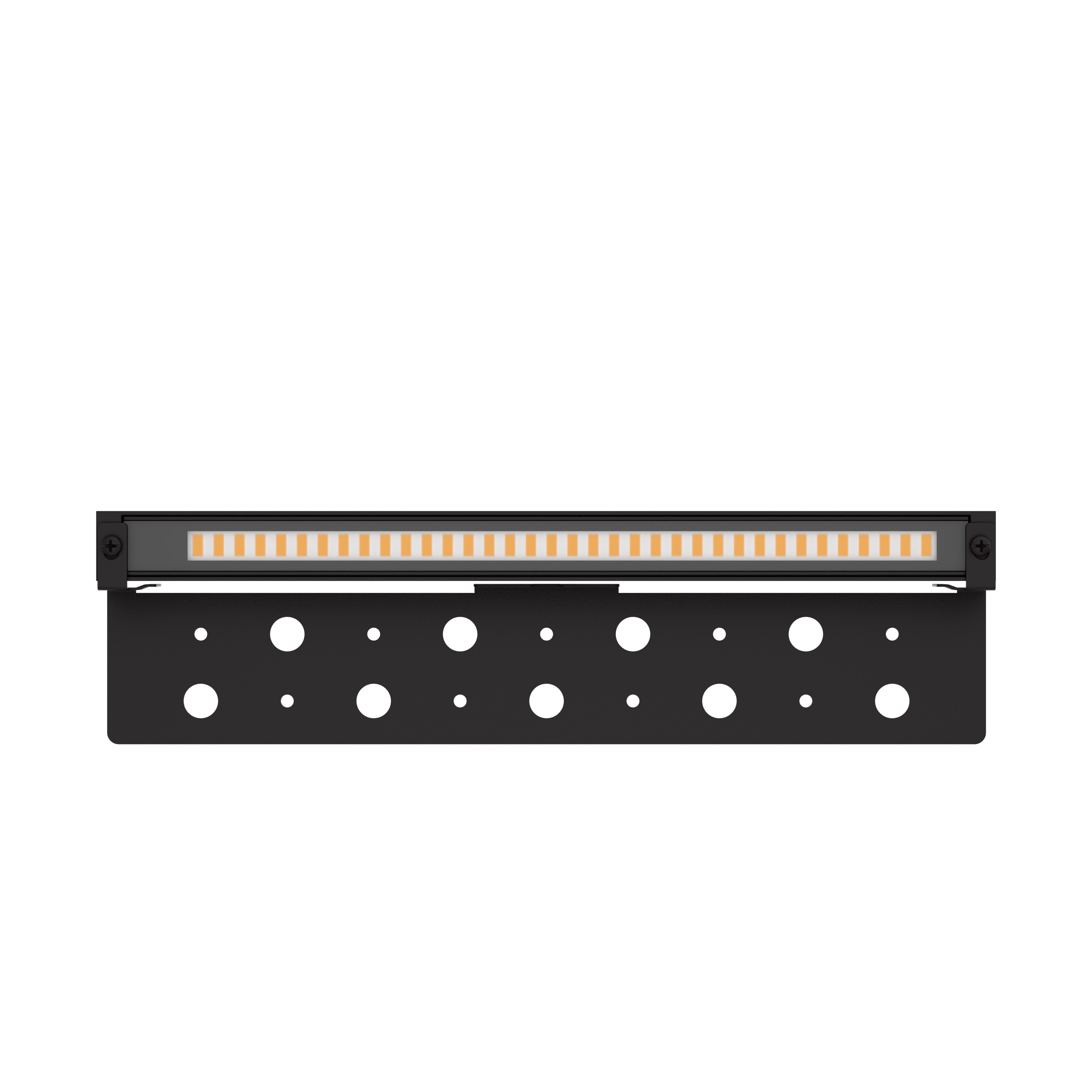

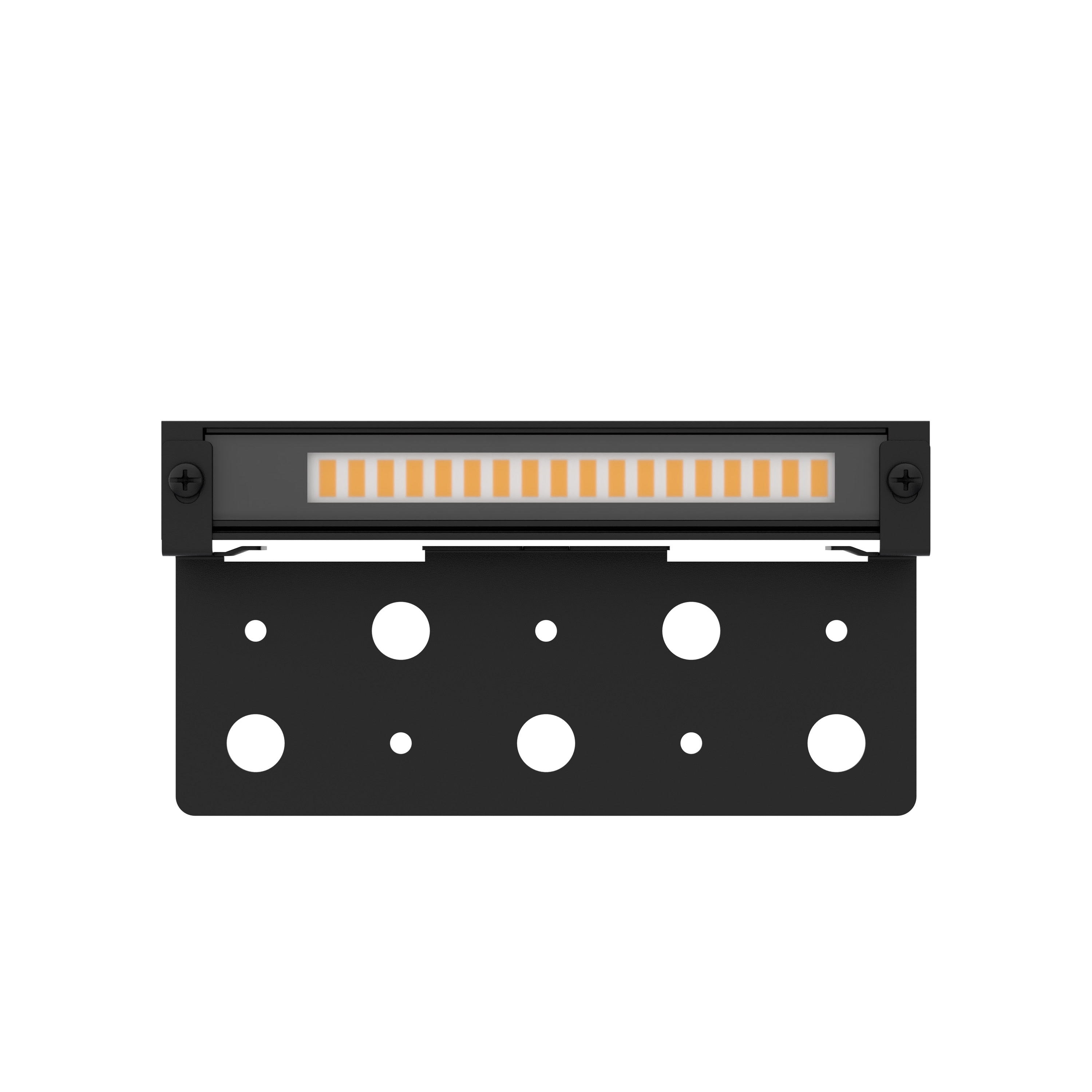

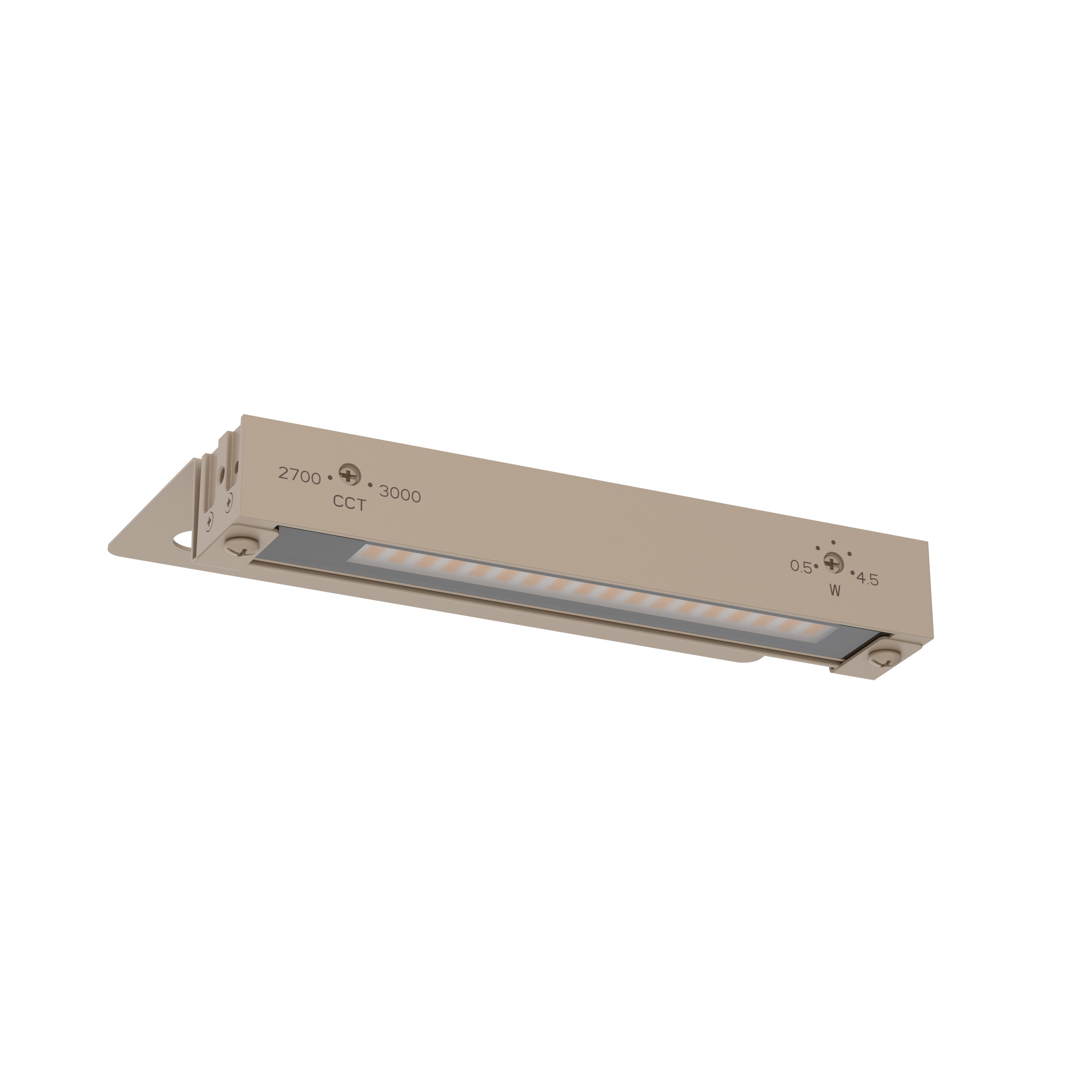

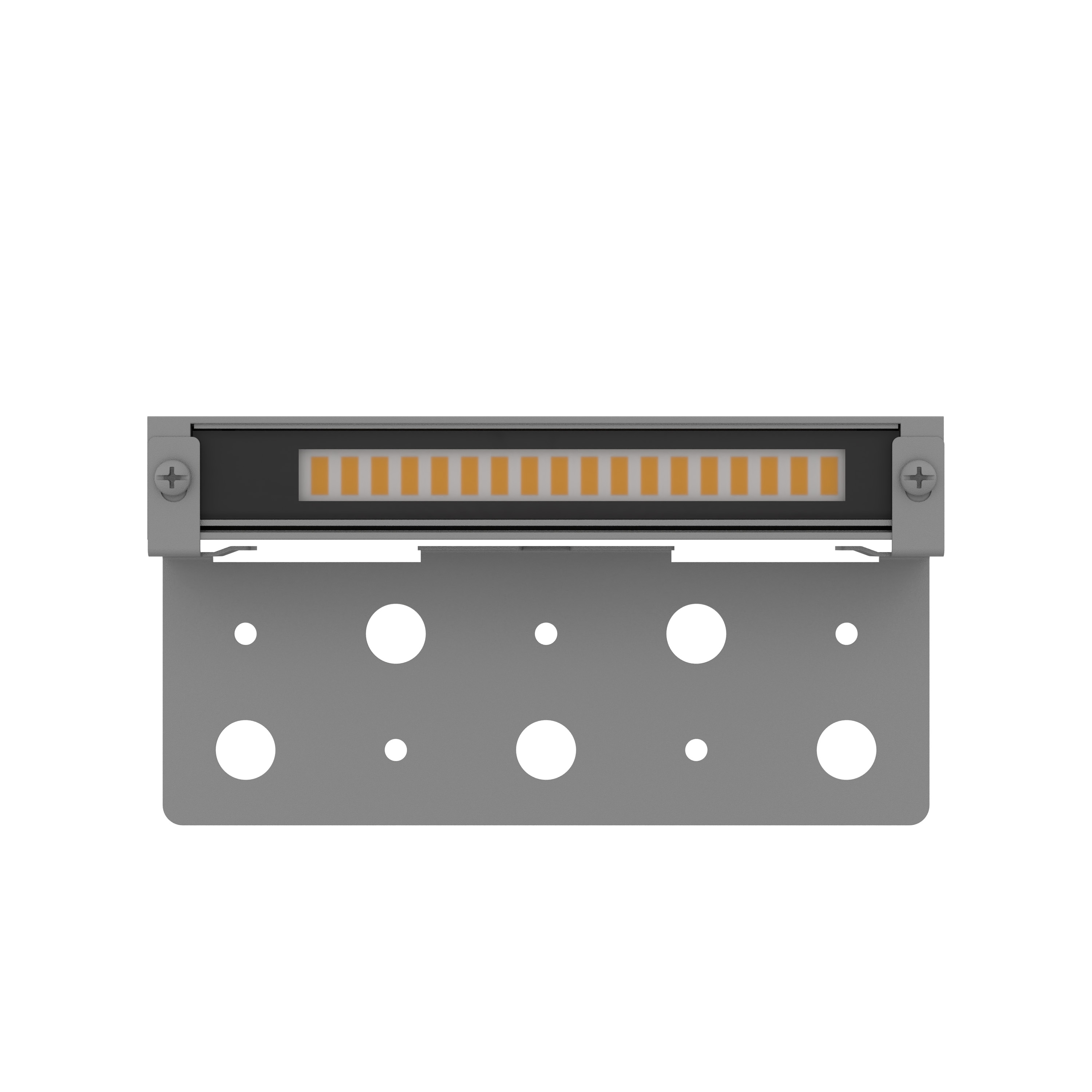

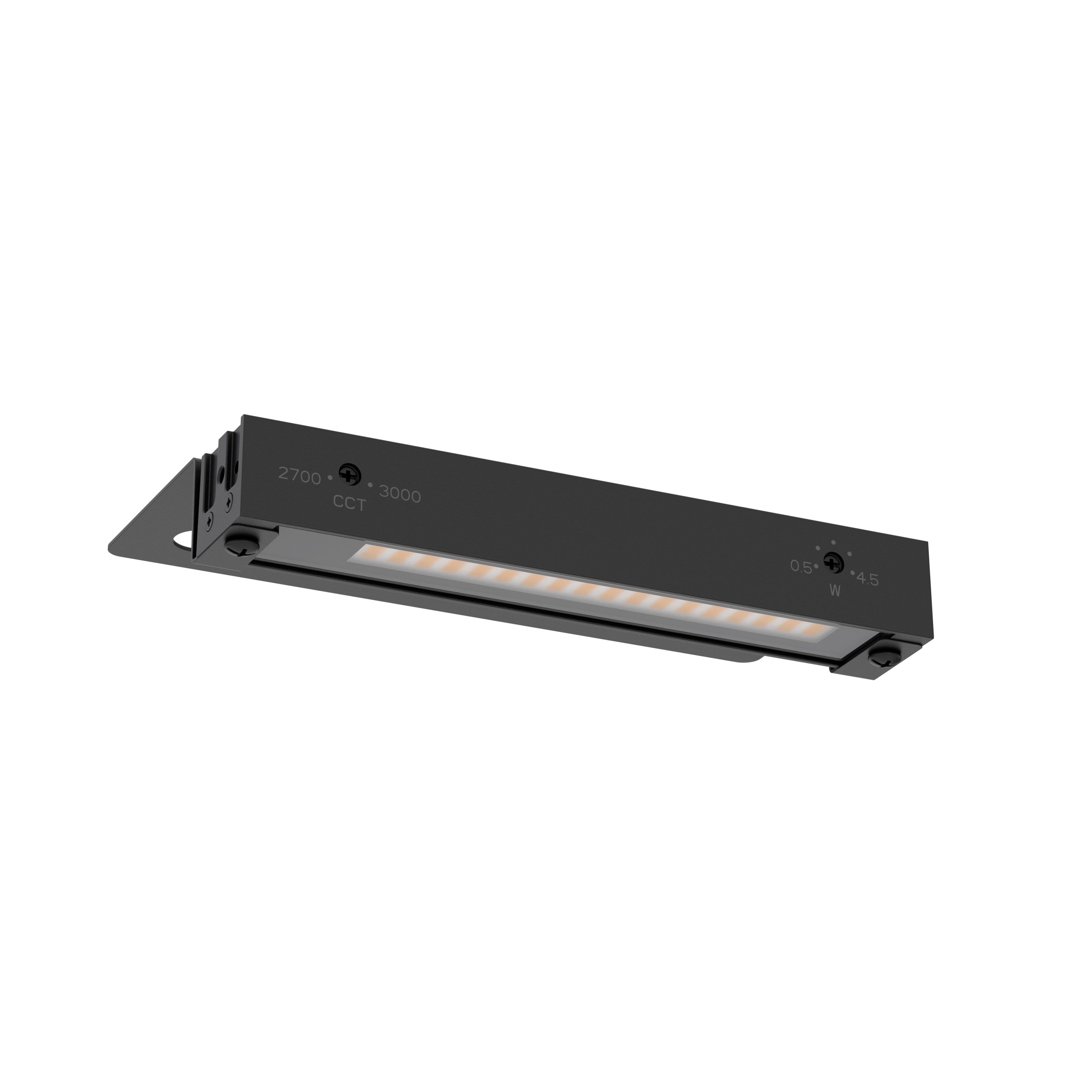

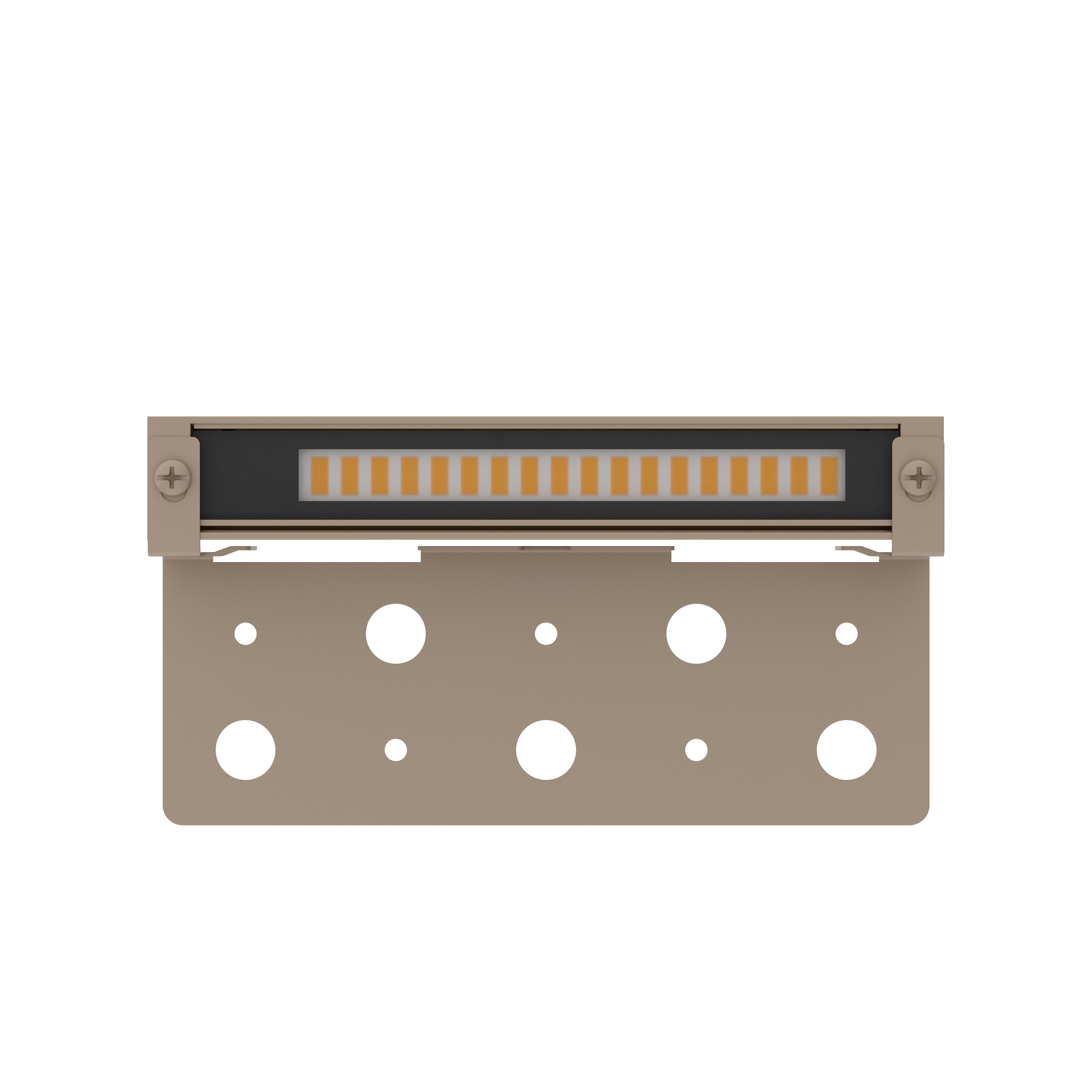

Hardscape Quick Connect Luminaire With Dual CCT

Specifications

Order Number:
model & size color temp & cri watt lumens finish
7062 - 6" 27/30 - 2700K/3000K - 85 4.5W 110 BBR - Bronze on Brass
7062 - 6" 27/30 - 2700K/3000K - 85 4.5W 110 BK - Black on Aluminum
7062 - 6" 27/30 - 2700K/3000K - 85 4.5W 110 BZ - Bronze on Aluminum
7062 - 6" 27/30 - 2700K/3000K - 85 4.5W 110 GH - Graphite on Aluminum
7062 - 6" 27/30 - 2700K/3000K - 85 4.5W 110 SD - Sand on Aluminum
7122 - 12" 27/30 - 2700K/3000K - 85 7.0W 230 BBR - Bronze on Brass
7122 - 12" 27/30 - 2700K/3000K - 85 7.0W 230 BK - Black on Aluminum
7122 - 12" 27/30 - 2700K/3000K - 85 7.0W 230 BZ - Bronze on Aluminum
7122 - 12" 27/30 - 2700K/3000K - 85 7.0W 230 GH - Graphite on Aluminum
7122 - 12" 27/30 - 2700K/3000K - 85 7.0W 230 SD - Sand on Aluminum
7182 - 18" 27/30 - 2700K/3000K - 85 8.5W 350 BK - Black on Aluminum
7182 - 18" 27/30 - 2700K/3000K - 85 8.5W 350 BZ - Bronze on Aluminum
7182 - 18" 27/30 - 2700K/3000K - 85 8.5W 350 GH - Graphite on Aluminum
7182 - 18" 27/30 - 2700K/3000K - 85 8.5W 350 SD - Sand on Aluminum

Features

  • Delivered Lumens: Up to 350lm
  • 2700K/3000K
  • CRI: 85
  • Power: 4.5W, 7.0W, 8.5W
  • Input: 9-15 VAC, 50/60Hz
  • Rated Life: 50000 Hours
  • Construction: Solid die-cast brass
  • Quick release connection at fixture to easily detach after installation

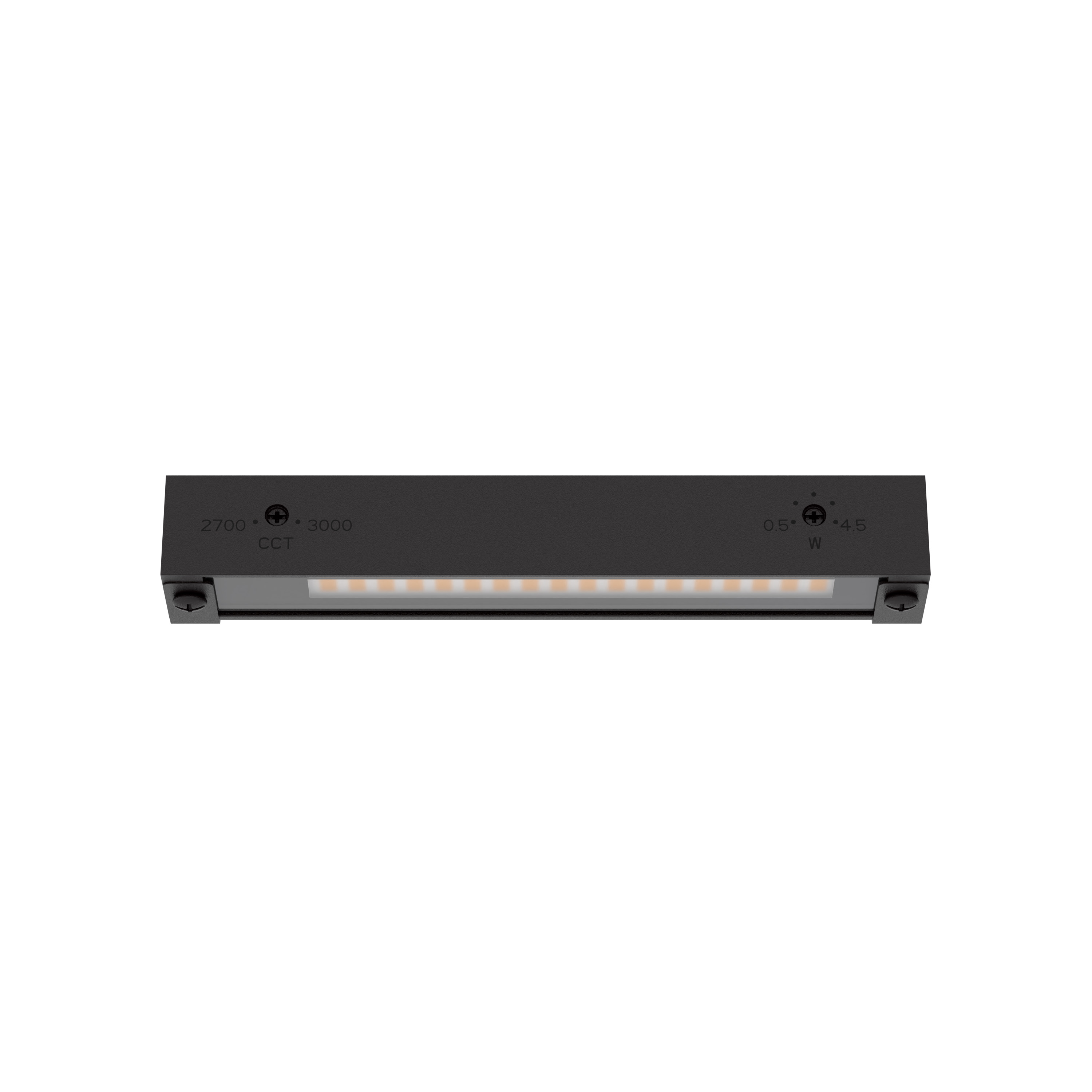

  • Integral brightness control, select color temperature option

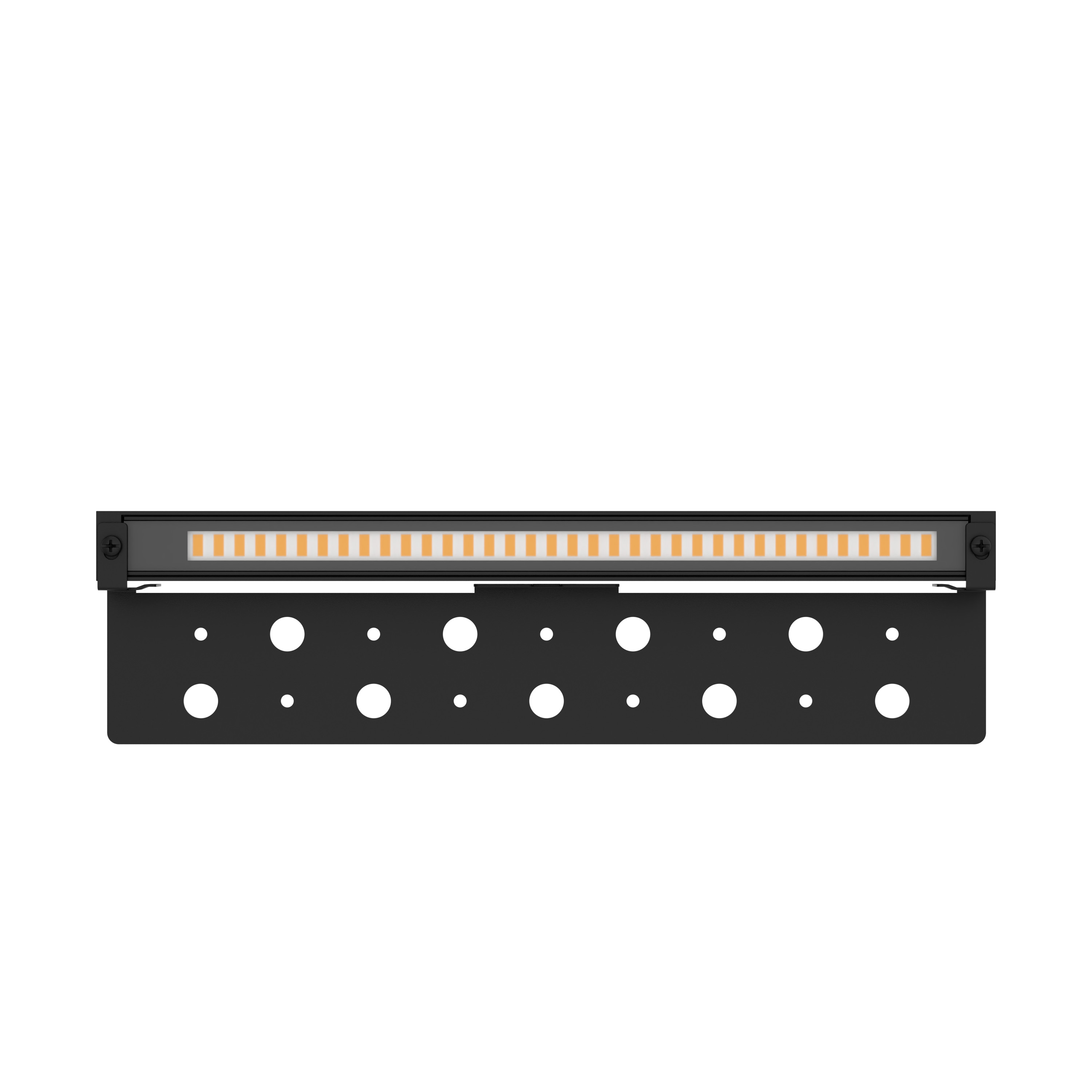

  • Hardscape easily detaches from capstone bracket after installation
  • Transformer required
  • Can be mounted on wall in all orientations

Line Drawing

Components
