Specifications
Order Number:
| model & size | color temp | finish | led watts | led lumens | delivered lumens |
|---|---|---|---|---|---|
| PD-51315 - 15" | 3000K | AB - Aged Brass | 7W | 500 | 401 |
| PD-51315 - 15" | 3000K | BK - Black | 7W | 500 | 401 |
| PD-51322 - 22" | 3000K | AB - Aged Brass | 9W | 720 | 577 |
| PD-51322 - 22" | 3000K | BK - Black | 9W | 720 | 577 |
Features
- Delivered Lumens: 577lm
- 3000K
- CRI: 90
- Power: 7W, 9W
- Input: 120/277V, 50/60Hz
- ELV Dimming: 100-10%
- TRIAC Dimming: 100-10%
- Rated Life: 50000 Hours
- Construction: Aluminum body with glass diffuser
- Low profile, adjustable powered aircraft cables for an ultra-clean look
- Spin-on round canopy with minimal hardware
- May be mounted on a sloped ceiling
- New LED filament techonology, each LED filament lamp replaceable with quick connector
- Driver concealed within the canopy

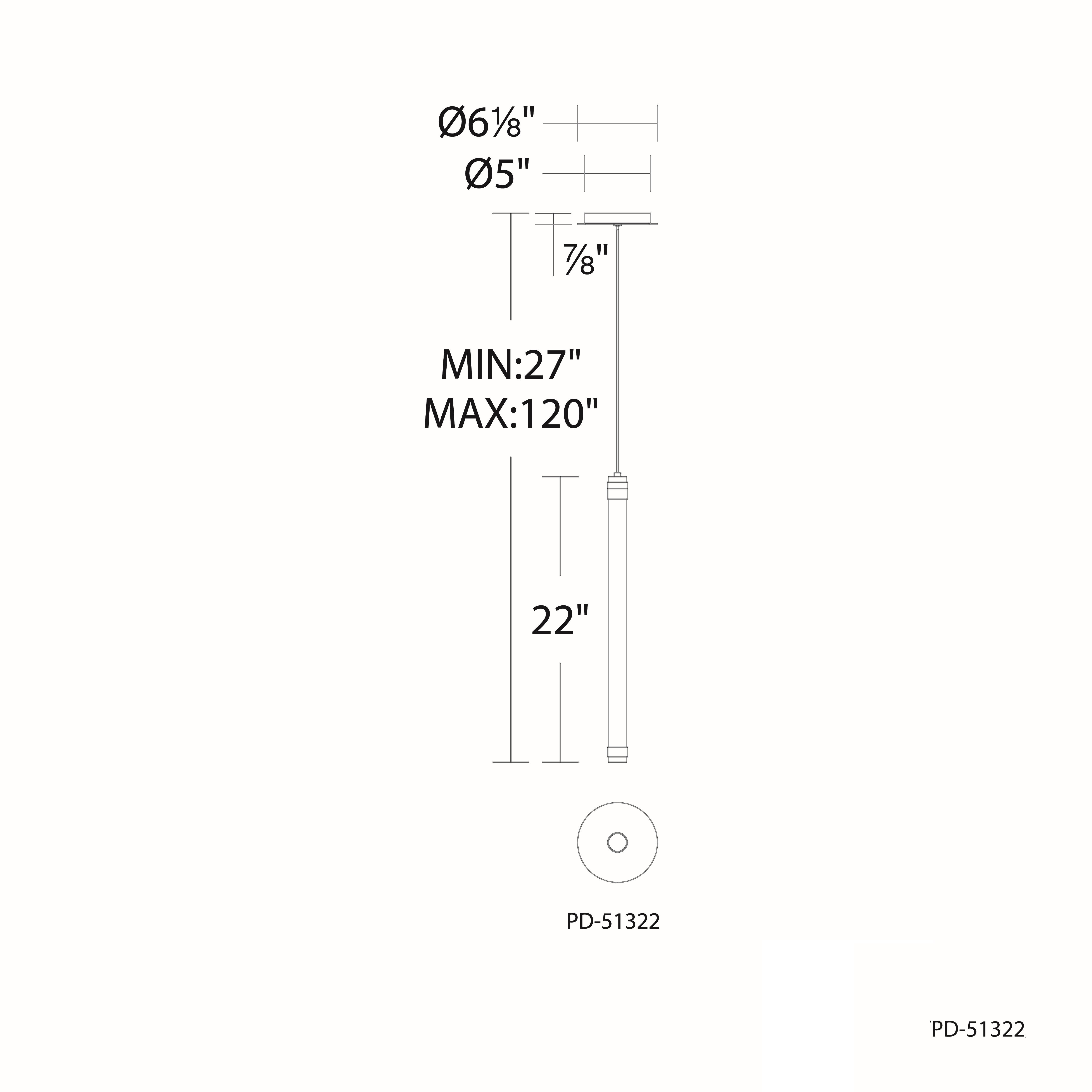

Line Drawing
