Multi Stealth Remodel Housing

Specifications

Order Number:
model & size watt rating
R1GRT02 - 2 CELL 8W Non IC
R1GRT04 - 4 CELL 14W Non IC
R1GRT06 - 6 CELL 20W Non IC
R1GRT08 - 8 CELL 27W Non IC
R1GRT12 - 12 CELL 38W Non IC

Features

  • Power: 14W, 20W, 27W, 38W, 8W
  • Input: 120-277 VAC, 50/60Hz
  • Non IC
  • ELV Dimming: 100-5%
  • 0-10V Dimming: 100-1%
  • TRIAC Dimming: 100-5%
  • Construction: 20 Gauge cold rolled steel
  • Compatible with downlight, adjustable, and wall wash trims for Non IC remodel applications
  • Driver concealed within the fixture

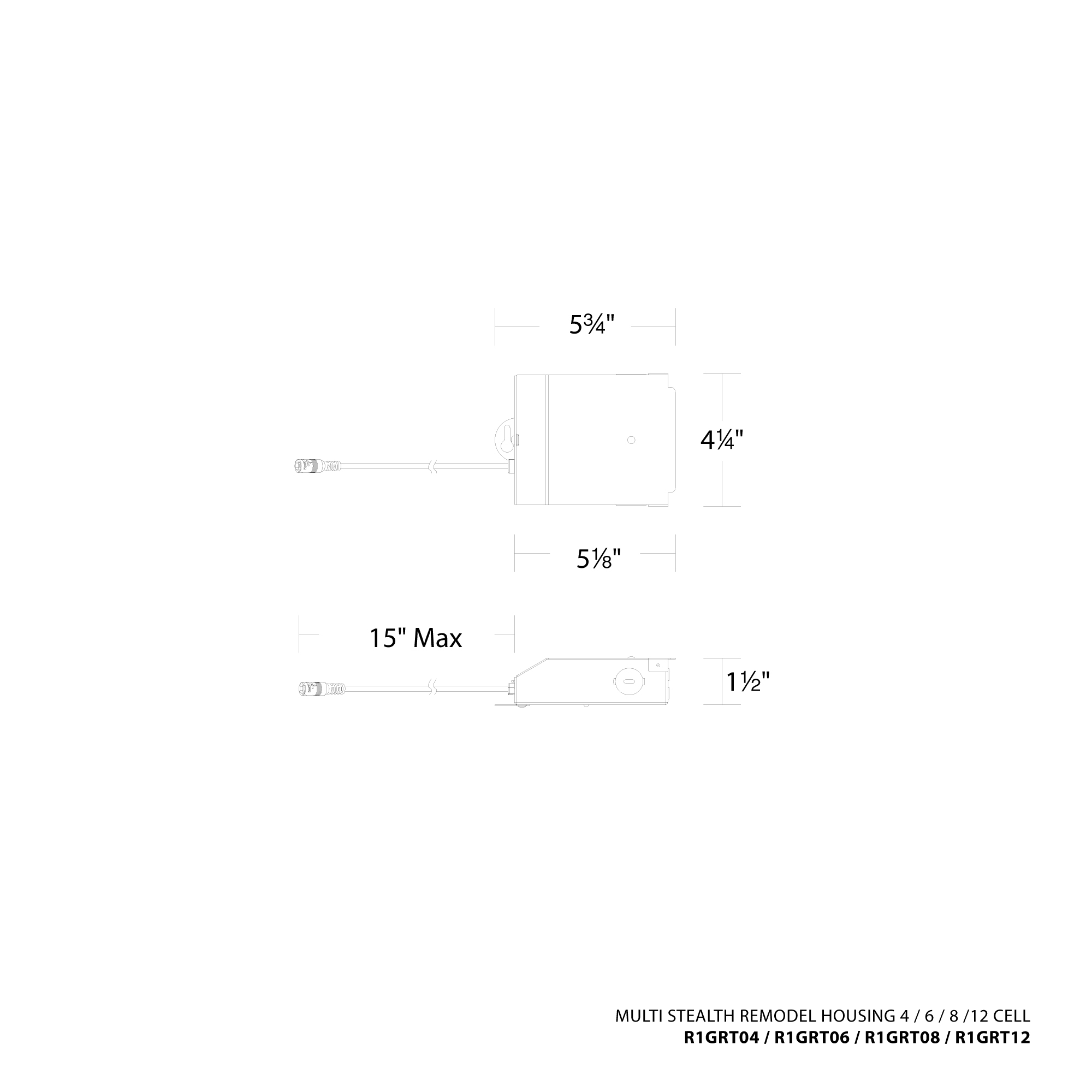

Line Drawing

Components
