Specifications Limited Availability, Consult Factory
Limited Availability, Consult Factory
Order Number:
| model & size | color temp | finish | led watts | led lumens | delivered lumens |
|---|---|---|---|---|---|
| WS-W45714 - 14" | 3000K | BK - Black | 20W | 1865 | 685 |
| WS-W45720 - 20" | 3000K | BK - Black | 20W | 1900 | 745 |
| WS-W45726 - 26" | 3000K | BK - Black | 35W | 3273 | 1026 |
Features
- Delivered Lumens: 1026lm
- 3000K
- CRI: 90
- Power: 20W, 35W
- Input: 120 VAC, 277 VAC, 50/60Hz
- ELV Dimming: 100-10%
- Rated Life: 54000 Hours
- Construction: Aluminum hardware with glass diffuser
- Bent opal glass provides even illumination
- Weather resistant powder coated finish
- ACLED driverless technology
- Can be mounted on wall in all orientations
- For 277V special order, add an "F" before the finish: WS-W45726F-BK

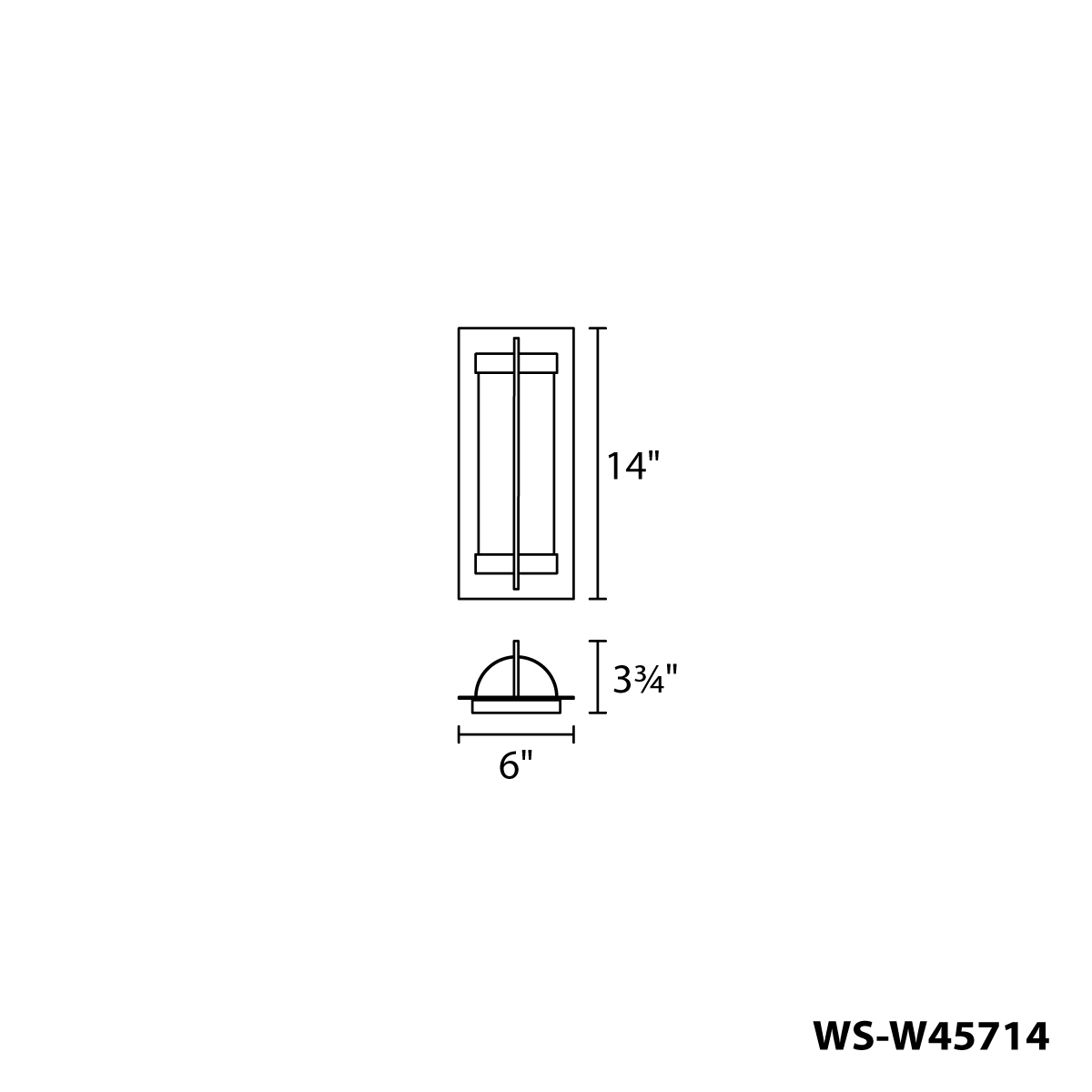

Line Drawing
