Specifications
Order Number:
| model | beam | color temp & cri | lumens | cbcp | finish |
|---|---|---|---|---|---|
| MT-4LD216N | F - 40° | 27 - 2700K - 85 | 2530 | 3060×2 | BK - Black |
| MT-4LD216N | F - 40° | 30 - 3000K - 85 | 2630 | 3185×2 | BK - Black |
| MT-4LD216N | F - 40° | 35 - 3500K - 85 | 2710 | 3275×2 | BK - Black |
| MT-4LD216N | F - 40° | 40 - 4000K - 85 | 2730 | 3310×2 | BK - Black |
| MT-4LD216N | F - 40° | 927 - 2700K - 90 | 2100 | 2540×2 | BK - Black |
| MT-4LD216N | F - 40° | 930 - 3000K - 90 | 2180 | 2635×2 | BK - Black |
| MT-4LD216N | S - 20° | 27 - 2700K - 85 | 2600 | 6900×2 | BK - Black |
| MT-4LD216N | S - 20° | 30 - 3000K - 85 | 2700 | 7270×2 | BK - Black |
| MT-4LD216N | S - 20° | 35 - 3500K - 85 | 2780 | 7480×2 | BK - Black |
| MT-4LD216N | S - 20° | 40 - 4000K - 85 | 2810 | 7550×2 | BK - Black |
| MT-4LD216N | S - 20° | 927 - 2700K - 90 | 2160 | 5800×2 | BK - Black |
| MT-4LD216N | S - 20° | 930 - 3000K - 90 | 2240 | 6010×2 | BK - Black |
| MT4LD211NE | F - 40° | 27 - 2700K - 85 | 2000 | 2395×2 | BK - Black |
| MT4LD211NE | F - 40° | 30 - 3000K - 85 | 2080 | 2490×2 | BK - Black |
| MT4LD211NE | F - 40° | 35 - 3500K - 85 | 2140 | 2560×2 | BK - Black |
| MT4LD211NE | F - 40° | 40 - 4000K - 85 | 2160 | 2585×2 | BK - Black |
| MT4LD211NE | F - 40° | 927 - 2700K - 90 | 1650 | 1980×2 | BK - Black |
| MT4LD211NE | F - 40° | 930 - 3000K - 90 | 1720 | 2065×2 | BK - Black |
| MT4LD211NE | S - 20° | 27 - 2700K - 85 | 2060 | 5570×2 | BK - Black |
| MT4LD211NE | S - 20° | 30 - 3000K - 85 | 2140 | 5790×2 | BK - Black |
| MT4LD211NE | S - 20° | 35 - 3500K - 85 | 2200 | 5960×2 | BK - Black |
| MT4LD211NE | S - 20° | 40 - 4000K - 85 | 2220 | 6015×2 | BK - Black |
| MT4LD211NE | S - 20° | 927 - 2700K - 90 | 1710 | 4620×2 | BK - Black |
| MT4LD211NE | S - 20° | 930 - 3000K - 90 | 1770 | 4790×2 | BK - Black |
| MT4LD216NE | F - 40° | 27 - 2700K - 85 | 2530 | 3060×2 | BK - Black |
| MT4LD216NE | F - 40° | 30 - 3000K - 85 | 2630 | 3185×2 | BK - Black |
| MT4LD216NE | F - 40° | 35 - 3500K - 85 | 2710 | 3275×2 | BK - Black |
| MT4LD216NE | F - 40° | 40 - 4000K - 85 | 2730 | 3310×2 | BK - Black |
| MT4LD216NE | F - 40° | 927 - 2700K - 90 | 2100 | 2540×2 | BK - Black |
| MT4LD216NE | F - 40° | 930 - 3000K - 90 | 2180 | 2635×2 | BK - Black |
| MT4LD216NE | S - 20° | 27 - 2700K - 85 | 2600 | 6900×2 | BK - Black |
| MT4LD216NE | S - 20° | 30 - 3000K - 85 | 2700 | 7270×2 | BK - Black |
| MT4LD216NE | S - 20° | 35 - 3500K - 85 | 2780 | 7480×2 | BK - Black |
| MT4LD216NE | S - 20° | 40 - 4000K - 85 | 2810 | 7550×2 | BK - Black |
| MT4LD216NE | S - 20° | 927 - 2700K - 90 | 2160 | 5800×2 | BK - Black |
| MT4LD216NE | S - 20° | 930 - 3000K - 90 | 2240 | 6010×2 | BK - Black |
Features
- Delivered Lumens: Up to 2810lm
- CBCP: Up to 7550
- 2700K, 3000K, 3500K, 4000K
- CRI: 90
- Power: 22W, 30W
- Input: 120 VAC, 120-277 VAC, 50/60Hz
- IC Rated, Non IC Rated, Airtight
- ELV Dimming: 100-5%
- 0-10V Dimming: 100-10%
- Rated Life: 50000 Hours
- Construction: Die-cast aluminum head with rotatable front face. Steel housing and trim.
- 365° horizontal rotation and 180° vertical aiming
- Independently adjustable and retractable head
- Driver concealed within the fixture

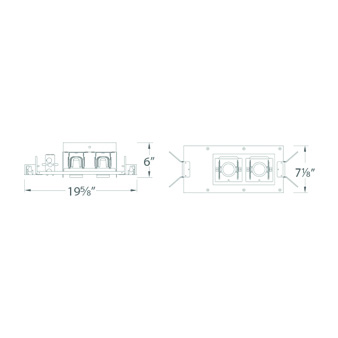

Line Drawing
