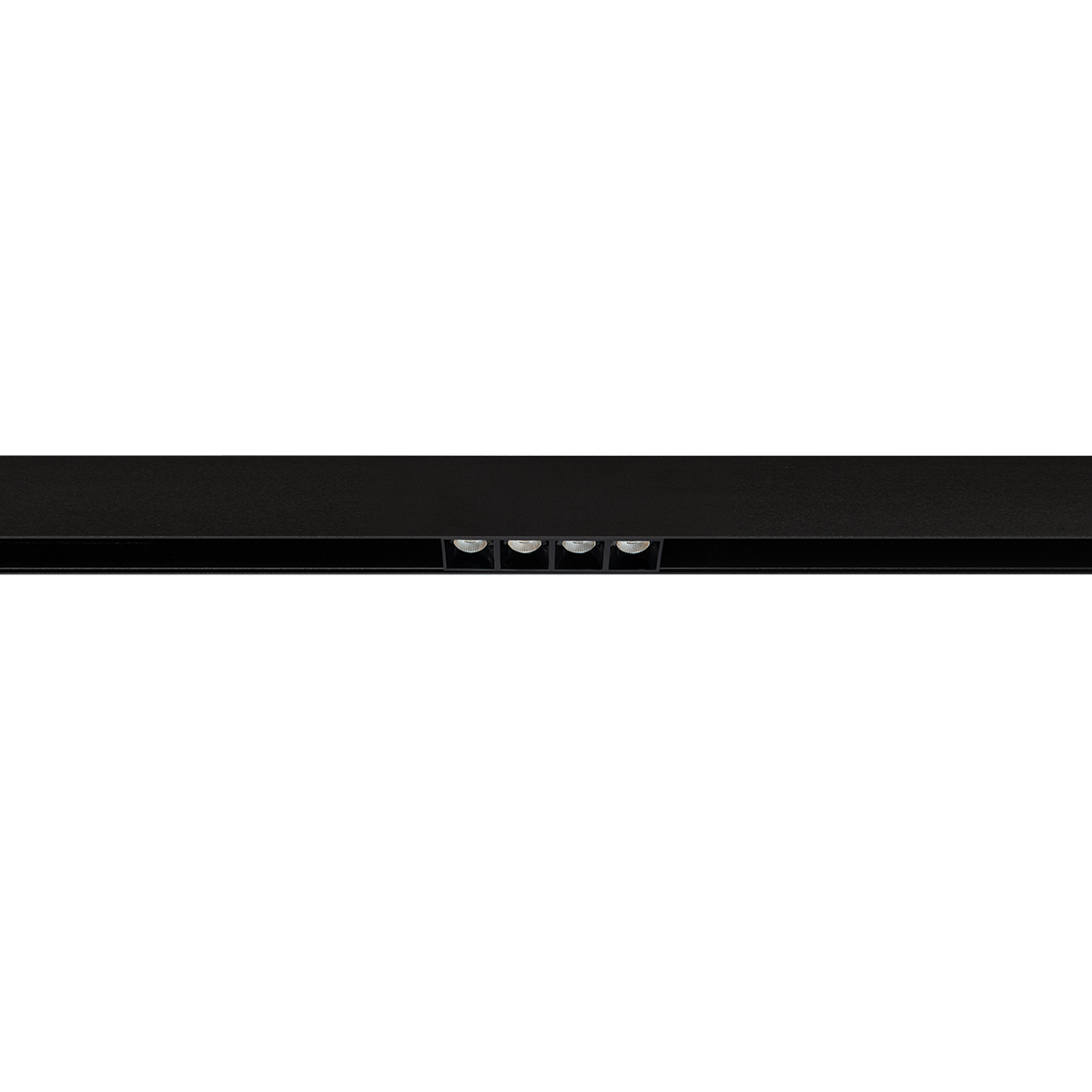

STRUT Multi Stealth Downlights

Specifications

Order Number:
model & size power watt beam color temp & cri delivered lumens cbcp finish
S2MD06 1 3.5W F - 45° 927 - 2700K - 90 260 430 BK - Black
S2MD06 1 3.5W F - 45° 927 - 2700K - 90 260 430 CH - Chrome
S2MD06 1 3.5W F - 45° 927 - 2700K - 90 260 430 GL - Gold
S2MD06 1 3.5W F - 45° 927 - 2700K - 90 260 430 HZ - Haze
S2MD06 1 3.5W F - 45° 930 - 3000K - 90 270 450 BK - Black
S2MD06 1 3.5W F - 45° 930 - 3000K - 90 270 450 CH - Chrome
S2MD06 1 3.5W F - 45° 930 - 3000K - 90 270 450 GL - Gold
S2MD06 1 3.5W F - 45° 930 - 3000K - 90 270 450 HZ - Haze
S2MD06 1 3.5W F - 45° 935 - 3500K - 90 280 470 BK - Black
S2MD06 1 3.5W F - 45° 935 - 3500K - 90 280 470 CH - Chrome
S2MD06 1 3.5W F - 45° 935 - 3500K - 90 280 470 GL - Gold
S2MD06 1 3.5W F - 45° 935 - 3500K - 90 280 470 HZ - Haze
S2MD06 1 3.5W F - 45° 940 - 4000K - 90 290 480 BK - Black
S2MD06 1 3.5W F - 45° 940 - 4000K - 90 290 480 CH - Chrome
S2MD06 1 3.5W F - 45° 940 - 4000K - 90 290 480 GL - Gold
S2MD06 1 3.5W F - 45° 940 - 4000K - 90 290 480 HZ - Haze
S2MD06 1 3.5W N - 32° 927 - 2700K - 90 260 610 BK - Black
S2MD06 1 3.5W N - 32° 927 - 2700K - 90 260 610 CH - Chrome
S2MD06 1 3.5W N - 32° 927 - 2700K - 90 260 610 GL - Gold
S2MD06 1 3.5W N - 32° 927 - 2700K - 90 260 610 HZ - Haze
S2MD06 1 3.5W N - 32° 930 - 3000K - 90 270 640 BK - Black
S2MD06 1 3.5W N - 32° 930 - 3000K - 90 270 640 CH - Chrome
S2MD06 1 3.5W N - 32° 930 - 3000K - 90 270 640 GL - Gold
S2MD06 1 3.5W N - 32° 930 - 3000K - 90 270 640 HZ - Haze
S2MD06 1 3.5W N - 32° 935 - 3500K - 90 280 670 BK - Black
S2MD06 1 3.5W N - 32° 935 - 3500K - 90 280 670 CH - Chrome
S2MD06 1 3.5W N - 32° 935 - 3500K - 90 280 670 GL - Gold
S2MD06 1 3.5W N - 32° 935 - 3500K - 90 280 670 HZ - Haze
S2MD06 1 3.5W N - 32° 940 - 4000K - 90 290 680 BK - Black
S2MD06 1 3.5W N - 32° 940 - 4000K - 90 290 680 CH - Chrome
S2MD06 1 3.5W N - 32° 940 - 4000K - 90 290 680 GL - Gold
S2MD06 1 3.5W N - 32° 940 - 4000K - 90 290 680 HZ - Haze
S2MD06 1 3.5W S - 16° 927 - 2700K - 90 250 1230 BK - Black
S2MD06 1 3.5W S - 16° 927 - 2700K - 90 250 1230 CH - Chrome
S2MD06 1 3.5W S - 16° 927 - 2700K - 90 250 1230 GL - Gold
S2MD06 1 3.5W S - 16° 927 - 2700K - 90 250 1230 HZ - Haze
S2MD06 1 3.5W S - 16° 930 - 3000K - 90 260 1290 BK - Black
S2MD06 1 3.5W S - 16° 930 - 3000K - 90 260 1290 CH - Chrome
S2MD06 1 3.5W S - 16° 930 - 3000K - 90 260 1290 GL - Gold
S2MD06 1 3.5W S - 16° 930 - 3000K - 90 260 1290 HZ - Haze
S2MD06 1 3.5W S - 16° 935 - 3500K - 90 270 1350 BK - Black
S2MD06 1 3.5W S - 16° 935 - 3500K - 90 270 1350 CH - Chrome
S2MD06 1 3.5W S - 16° 935 - 3500K - 90 270 1350 GL - Gold
S2MD06 1 3.5W S - 16° 935 - 3500K - 90 270 1350 HZ - Haze
S2MD06 1 3.5W S - 16° 940 - 4000K - 90 280 1380 BK - Black
S2MD06 1 3.5W S - 16° 940 - 4000K - 90 280 1380 CH - Chrome
S2MD06 1 3.5W S - 16° 940 - 4000K - 90 280 1380 GL - Gold
S2MD06 1 3.5W S - 16° 940 - 4000K - 90 280 1380 HZ - Haze
S2MD06 2 5W F - 45° 927 - 2700K - 90 400 640 BK - Black
S2MD06 2 5W F - 45° 927 - 2700K - 90 400 640 CH - Chrome
S2MD06 2 5W F - 45° 927 - 2700K - 90 400 640 GL - Gold
S2MD06 2 5W F - 45° 927 - 2700K - 90 400 640 HZ - Haze
S2MD06 2 5W F - 45° 930 - 3000K - 90 420 670 BK - Black
S2MD06 2 5W F - 45° 930 - 3000K - 90 420 670 CH - Chrome
S2MD06 2 5W F - 45° 930 - 3000K - 90 420 670 GL - Gold
S2MD06 2 5W F - 45° 930 - 3000K - 90 420 670 HZ - Haze
S2MD06 2 5W F - 45° 935 - 3500K - 90 440 700 BK - Black
S2MD06 2 5W F - 45° 935 - 3500K - 90 440 700 CH - Chrome
S2MD06 2 5W F - 45° 935 - 3500K - 90 440 700 GL - Gold
S2MD06 2 5W F - 45° 935 - 3500K - 90 440 700 HZ - Haze
S2MD06 2 5W F - 45° 940 - 4000K - 90 450 720 BK - Black
S2MD06 2 5W F - 45° 940 - 4000K - 90 450 720 CH - Chrome
S2MD06 2 5W F - 45° 940 - 4000K - 90 450 720 GL - Gold
S2MD06 2 5W F - 45° 940 - 4000K - 90 450 720 HZ - Haze
S2MD06 2 5W N - 32° 927 - 2700K - 90 390 950 BK - Black
S2MD06 2 5W N - 32° 927 - 2700K - 90 390 950 CH - Chrome
S2MD06 2 5W N - 32° 927 - 2700K - 90 390 950 GL - Gold
S2MD06 2 5W N - 32° 927 - 2700K - 90 390 950 HZ - Haze
S2MD06 2 5W N - 32° 930 - 3000K - 90 410 1000 BK - Black
S2MD06 2 5W N - 32° 930 - 3000K - 90 410 1000 CH - Chrome
S2MD06 2 5W N - 32° 930 - 3000K - 90 410 1000 GL - Gold
S2MD06 2 5W N - 32° 930 - 3000K - 90 410 1000 HZ - Haze
S2MD06 2 5W N - 32° 935 - 3500K - 90 430 1050 BK - Black
S2MD06 2 5W N - 32° 935 - 3500K - 90 430 1050 CH - Chrome
S2MD06 2 5W N - 32° 935 - 3500K - 90 430 1050 GL - Gold
S2MD06 2 5W N - 32° 935 - 3500K - 90 430 1050 HZ - Haze
S2MD06 2 5W N - 32° 940 - 4000K - 90 440 1070 BK - Black
S2MD06 2 5W N - 32° 940 - 4000K - 90 440 1070 CH - Chrome
S2MD06 2 5W N - 32° 940 - 4000K - 90 440 1070 GL - Gold
S2MD06 2 5W N - 32° 940 - 4000K - 90 440 1070 HZ - Haze
S2MD06 2 5W S - 16° 927 - 2700K - 90 380 1820 BK - Black
S2MD06 2 5W S - 16° 927 - 2700K - 90 380 1820 CH - Chrome
S2MD06 2 5W S - 16° 927 - 2700K - 90 380 1820 GL - Gold
S2MD06 2 5W S - 16° 927 - 2700K - 90 380 1820 HZ - Haze
S2MD06 2 5W S - 16° 930 - 3000K - 90 400 1920 BK - Black
S2MD06 2 5W S - 16° 930 - 3000K - 90 400 1920 CH - Chrome
S2MD06 2 5W S - 16° 930 - 3000K - 90 400 1920 GL - Gold
S2MD06 2 5W S - 16° 930 - 3000K - 90 400 1920 HZ - Haze
S2MD06 2 5W S - 16° 935 - 3500K - 90 420 2020 BK - Black
S2MD06 2 5W S - 16° 935 - 3500K - 90 420 2020 CH - Chrome
S2MD06 2 5W S - 16° 935 - 3500K - 90 420 2020 GL - Gold
S2MD06 2 5W S - 16° 935 - 3500K - 90 420 2020 HZ - Haze
S2MD06 2 5W S - 16° 940 - 4000K - 90 430 2050 BK - Black
S2MD06 2 5W S - 16° 940 - 4000K - 90 430 2050 CH - Chrome
S2MD06 2 5W S - 16° 940 - 4000K - 90 430 2050 GL - Gold
S2MD06 2 5W S - 16° 940 - 4000K - 90 430 2050 HZ - Haze
S2MD06 3 6W F - 45° 927 - 2700K - 90 490 860 BK - Black
S2MD06 3 6W F - 45° 927 - 2700K - 90 490 860 CH - Chrome
S2MD06 3 6W F - 45° 927 - 2700K - 90 490 860 GL - Gold
S2MD06 3 6W F - 45° 927 - 2700K - 90 490 860 HZ - Haze
S2MD06 3 6W F - 45° 930 - 3000K - 90 520 910 BK - Black
S2MD06 3 6W F - 45° 930 - 3000K - 90 520 910 CH - Chrome
S2MD06 3 6W F - 45° 930 - 3000K - 90 520 910 GL - Gold
S2MD06 3 6W F - 45° 930 - 3000K - 90 520 910 HZ - Haze
S2MD06 3 6W F - 45° 935 - 3500K - 90 550 960 BK - Black
S2MD06 3 6W F - 45° 935 - 3500K - 90 550 960 CH - Chrome
S2MD06 3 6W F - 45° 935 - 3500K - 90 550 960 GL - Gold
S2MD06 3 6W F - 45° 935 - 3500K - 90 550 960 HZ - Haze
S2MD06 3 6W F - 45° 940 - 4000K - 90 560 970 BK - Black
S2MD06 3 6W F - 45° 940 - 4000K - 90 560 970 CH - Chrome
S2MD06 3 6W F - 45° 940 - 4000K - 90 560 970 GL - Gold
S2MD06 3 6W F - 45° 940 - 4000K - 90 560 970 HZ - Haze
S2MD06 3 6W N - 32° 927 - 2700K - 90 480 1290 BK - Black
S2MD06 3 6W N - 32° 927 - 2700K - 90 480 1290 CH - Chrome
S2MD06 3 6W N - 32° 927 - 2700K - 90 480 1290 GL - Gold
S2MD06 3 6W N - 32° 927 - 2700K - 90 480 1290 HZ - Haze
S2MD06 3 6W N - 32° 930 - 3000K - 90 510 1360 BK - Black
S2MD06 3 6W N - 32° 930 - 3000K - 90 510 1360 CH - Chrome
S2MD06 3 6W N - 32° 930 - 3000K - 90 510 1360 GL - Gold
S2MD06 3 6W N - 32° 930 - 3000K - 90 510 1360 HZ - Haze
S2MD06 3 6W N - 32° 935 - 3500K - 90 540 1430 BK - Black
S2MD06 3 6W N - 32° 935 - 3500K - 90 540 1430 CH - Chrome
S2MD06 3 6W N - 32° 935 - 3500K - 90 540 1430 GL - Gold
S2MD06 3 6W N - 32° 935 - 3500K - 90 540 1430 HZ - Haze
S2MD06 3 6W N - 32° 940 - 4000K - 90 550 1460 BK - Black
S2MD06 3 6W N - 32° 940 - 4000K - 90 550 1460 CH - Chrome
S2MD06 3 6W N - 32° 940 - 4000K - 90 550 1460 GL - Gold
S2MD06 3 6W N - 32° 940 - 4000K - 90 550 1460 HZ - Haze
S2MD06 3 6W S - 16° 927 - 2700K - 90 450 2570 BK - Black
S2MD06 3 6W S - 16° 927 - 2700K - 90 450 2570 CH - Chrome
S2MD06 3 6W S - 16° 927 - 2700K - 90 450 2570 GL - Gold
S2MD06 3 6W S - 16° 927 - 2700K - 90 450 2570 HZ - Haze
S2MD06 3 6W S - 16° 930 - 3000K - 90 470 2710 BK - Black
S2MD06 3 6W S - 16° 930 - 3000K - 90 470 2710 CH - Chrome
S2MD06 3 6W S - 16° 930 - 3000K - 90 470 2710 GL - Gold
S2MD06 3 6W S - 16° 930 - 3000K - 90 470 2710 HZ - Haze
S2MD06 3 6W S - 16° 935 - 3500K - 90 490 2850 BK - Black
S2MD06 3 6W S - 16° 935 - 3500K - 90 490 2850 CH - Chrome
S2MD06 3 6W S - 16° 935 - 3500K - 90 490 2850 GL - Gold
S2MD06 3 6W S - 16° 935 - 3500K - 90 490 2850 HZ - Haze
S2MD06 3 6W S - 16° 940 - 4000K - 90 500 2900 BK - Black
S2MD06 3 6W S - 16° 940 - 4000K - 90 500 2900 CH - Chrome
S2MD06 3 6W S - 16° 940 - 4000K - 90 500 2900 GL - Gold
S2MD06 3 6W S - 16° 940 - 4000K - 90 500 2900 HZ - Haze
S2MD12 1 5.5W F - 45° 927 - 2700K - 90 480 900 BK - Black
S2MD12 1 5.5W F - 45° 927 - 2700K - 90 480 900 CH - Chrome
S2MD12 1 5.5W F - 45° 927 - 2700K - 90 480 900 GL - Gold
S2MD12 1 5.5W F - 45° 927 - 2700K - 90 480 900 HZ - Haze
S2MD12 1 5.5W F - 45° 930 - 3000K - 90 510 950 BK - Black
S2MD12 1 5.5W F - 45° 930 - 3000K - 90 510 950 CH - Chrome
S2MD12 1 5.5W F - 45° 930 - 3000K - 90 510 950 GL - Gold
S2MD12 1 5.5W F - 45° 930 - 3000K - 90 510 950 HZ - Haze
S2MD12 1 5.5W F - 45° 935 - 3500K - 90 540 1000 BK - Black
S2MD12 1 5.5W F - 45° 935 - 3500K - 90 540 1000 CH - Chrome
S2MD12 1 5.5W F - 45° 935 - 3500K - 90 540 1000 GL - Gold
S2MD12 1 5.5W F - 45° 935 - 3500K - 90 540 1000 HZ - Haze
S2MD12 1 5.5W F - 45° 940 - 4000K - 90 550 1020 BK - Black
S2MD12 1 5.5W F - 45° 940 - 4000K - 90 550 1020 CH - Chrome
S2MD12 1 5.5W F - 45° 940 - 4000K - 90 550 1020 GL - Gold
S2MD12 1 5.5W F - 45° 940 - 4000K - 90 550 1020 HZ - Haze
S2MD12 1 5.5W N - 32° 927 - 2700K - 90 480 1320 BK - Black
S2MD12 1 5.5W N - 32° 927 - 2700K - 90 480 1320 CH - Chrome
S2MD12 1 5.5W N - 32° 927 - 2700K - 90 480 1320 GL - Gold
S2MD12 1 5.5W N - 32° 927 - 2700K - 90 480 1320 HZ - Haze
S2MD12 1 5.5W N - 32° 930 - 3000K - 90 510 1390 BK - Black
S2MD12 1 5.5W N - 32° 930 - 3000K - 90 510 1390 CH - Chrome
S2MD12 1 5.5W N - 32° 930 - 3000K - 90 510 1390 GL - Gold
S2MD12 1 5.5W N - 32° 930 - 3000K - 90 510 1390 HZ - Haze
S2MD12 1 5.5W N - 32° 935 - 3500K - 90 540 1460 BK - Black
S2MD12 1 5.5W N - 32° 935 - 3500K - 90 540 1460 CH - Chrome
S2MD12 1 5.5W N - 32° 935 - 3500K - 90 540 1460 GL - Gold
S2MD12 1 5.5W N - 32° 935 - 3500K - 90 540 1460 HZ - Haze
S2MD12 1 5.5W N - 32° 940 - 4000K - 90 550 1490 BK - Black
S2MD12 1 5.5W N - 32° 940 - 4000K - 90 550 1490 CH - Chrome
S2MD12 1 5.5W N - 32° 940 - 4000K - 90 550 1490 GL - Gold
S2MD12 1 5.5W N - 32° 940 - 4000K - 90 550 1490 HZ - Haze
S2MD12 1 5.5W S - 16° 927 - 2700K - 90 490 2460 BK - Black
S2MD12 1 5.5W S - 16° 927 - 2700K - 90 490 2460 CH - Chrome
S2MD12 1 5.5W S - 16° 927 - 2700K - 90 490 2460 GL - Gold
S2MD12 1 5.5W S - 16° 927 - 2700K - 90 490 2460 HZ - Haze
S2MD12 1 5.5W S - 16° 930 - 3000K - 90 520 2590 BK - Black
S2MD12 1 5.5W S - 16° 930 - 3000K - 90 520 2590 CH - Chrome
S2MD12 1 5.5W S - 16° 930 - 3000K - 90 520 2590 GL - Gold
S2MD12 1 5.5W S - 16° 930 - 3000K - 90 520 2590 HZ - Haze
S2MD12 1 5.5W S - 16° 935 - 3500K - 90 550 2720 BK - Black
S2MD12 1 5.5W S - 16° 935 - 3500K - 90 550 2720 CH - Chrome
S2MD12 1 5.5W S - 16° 935 - 3500K - 90 550 2720 GL - Gold
S2MD12 1 5.5W S - 16° 935 - 3500K - 90 550 2720 HZ - Haze
S2MD12 1 5.5W S - 16° 940 - 4000K - 90 560 2770 BK - Black
S2MD12 1 5.5W S - 16° 940 - 4000K - 90 560 2770 CH - Chrome
S2MD12 1 5.5W S - 16° 940 - 4000K - 90 560 2770 GL - Gold
S2MD12 1 5.5W S - 16° 940 - 4000K - 90 560 2770 HZ - Haze
S2MD12 2 8W F - 45° 927 - 2700K - 90 710 1350 BK - Black
S2MD12 2 8W F - 45° 927 - 2700K - 90 710 1350 CH - Chrome
S2MD12 2 8W F - 45° 927 - 2700K - 90 710 1350 GL - Gold
S2MD12 2 8W F - 45° 927 - 2700K - 90 710 1350 HZ - Haze
S2MD12 2 8W F - 45° 930 - 3000K - 90 750 1420 BK - Black
S2MD12 2 8W F - 45° 930 - 3000K - 90 750 1420 CH - Chrome
S2MD12 2 8W F - 45° 930 - 3000K - 90 750 1420 GL - Gold
S2MD12 2 8W F - 45° 930 - 3000K - 90 750 1420 HZ - Haze
S2MD12 2 8W F - 45° 935 - 3500K - 90 790 1490 BK - Black
S2MD12 2 8W F - 45° 935 - 3500K - 90 790 1490 CH - Chrome
S2MD12 2 8W F - 45° 935 - 3500K - 90 790 1490 GL - Gold
S2MD12 2 8W F - 45° 935 - 3500K - 90 790 1490 HZ - Haze
S2MD12 2 8W F - 45° 940 - 4000K - 90 800 1520 BK - Black
S2MD12 2 8W F - 45° 940 - 4000K - 90 800 1520 CH - Chrome
S2MD12 2 8W F - 45° 940 - 4000K - 90 800 1520 GL - Gold
S2MD12 2 8W F - 45° 940 - 4000K - 90 800 1520 HZ - Haze
S2MD12 2 8W N - 32° 927 - 2700K - 90 720 1960 BK - Black
S2MD12 2 8W N - 32° 927 - 2700K - 90 720 1960 CH - Chrome
S2MD12 2 8W N - 32° 927 - 2700K - 90 720 1960 GL - Gold
S2MD12 2 8W N - 32° 927 - 2700K - 90 720 1960 HZ - Haze
S2MD12 2 8W N - 32° 930 - 3000K - 90 760 2060 BK - Black
S2MD12 2 8W N - 32° 930 - 3000K - 90 760 2060 CH - Chrome
S2MD12 2 8W N - 32° 930 - 3000K - 90 760 2060 GL - Gold
S2MD12 2 8W N - 32° 930 - 3000K - 90 760 2060 HZ - Haze
S2MD12 2 8W N - 32° 935 - 3500K - 90 800 2160 BK - Black
S2MD12 2 8W N - 32° 935 - 3500K - 90 800 2160 CH - Chrome
S2MD12 2 8W N - 32° 935 - 3500K - 90 800 2160 GL - Gold
S2MD12 2 8W N - 32° 935 - 3500K - 90 800 2160 HZ - Haze
S2MD12 2 8W N - 32° 940 - 4000K - 90 810 2200 BK - Black
S2MD12 2 8W N - 32° 940 - 4000K - 90 810 2200 CH - Chrome
S2MD12 2 8W N - 32° 940 - 4000K - 90 810 2200 GL - Gold
S2MD12 2 8W N - 32° 940 - 4000K - 90 810 2200 HZ - Haze
S2MD12 2 8W S - 16° 927 - 2700K - 90 730 3790 BK - Black
S2MD12 2 8W S - 16° 927 - 2700K - 90 730 3790 CH - Chrome
S2MD12 2 8W S - 16° 927 - 2700K - 90 730 3790 GL - Gold
S2MD12 2 8W S - 16° 927 - 2700K - 90 730 3790 HZ - Haze
S2MD12 2 8W S - 16° 930 - 3000K - 90 770 3990 BK - Black
S2MD12 2 8W S - 16° 930 - 3000K - 90 770 3990 CH - Chrome
S2MD12 2 8W S - 16° 930 - 3000K - 90 770 3990 GL - Gold
S2MD12 2 8W S - 16° 930 - 3000K - 90 770 3990 HZ - Haze
S2MD12 2 8W S - 16° 935 - 3500K - 90 810 4190 BK - Black
S2MD12 2 8W S - 16° 935 - 3500K - 90 810 4190 CH - Chrome
S2MD12 2 8W S - 16° 935 - 3500K - 90 810 4190 GL - Gold
S2MD12 2 8W S - 16° 935 - 3500K - 90 810 4190 HZ - Haze
S2MD12 2 8W S - 16° 940 - 4000K - 90 820 4270 BK - Black
S2MD12 2 8W S - 16° 940 - 4000K - 90 820 4270 CH - Chrome
S2MD12 2 8W S - 16° 940 - 4000K - 90 820 4270 GL - Gold
S2MD12 2 8W S - 16° 940 - 4000K - 90 820 4270 HZ - Haze
S2MD12 3 10.5W F - 45° 927 - 2700K - 90 940 1770 BK - Black
S2MD12 3 10.5W F - 45° 927 - 2700K - 90 940 1770 CH - Chrome
S2MD12 3 10.5W F - 45° 927 - 2700K - 90 940 1770 GL - Gold
S2MD12 3 10.5W F - 45° 927 - 2700K - 90 940 1770 HZ - Haze
S2MD12 3 10.5W F - 45° 930 - 3000K - 90 990 1860 BK - Black
S2MD12 3 10.5W F - 45° 930 - 3000K - 90 990 1860 CH - Chrome
S2MD12 3 10.5W F - 45° 930 - 3000K - 90 990 1860 GL - Gold
S2MD12 3 10.5W F - 45° 930 - 3000K - 90 990 1860 HZ - Haze
S2MD12 3 10.5W F - 45° 935 - 3500K - 90 1040 1950 BK - Black
S2MD12 3 10.5W F - 45° 935 - 3500K - 90 1040 1950 CH - Chrome
S2MD12 3 10.5W F - 45° 935 - 3500K - 90 1040 1950 GL - Gold
S2MD12 3 10.5W F - 45° 935 - 3500K - 90 1040 1950 HZ - Haze
S2MD12 3 10.5W F - 45° 940 - 4000K - 90 1060 1990 BK - Black
S2MD12 3 10.5W F - 45° 940 - 4000K - 90 1060 1990 CH - Chrome
S2MD12 3 10.5W F - 45° 940 - 4000K - 90 1060 1990 GL - Gold
S2MD12 3 10.5W F - 45° 940 - 4000K - 90 1060 1990 HZ - Haze
S2MD12 3 10.5W N - 32° 927 - 2700K - 90 950 2570 BK - Black
S2MD12 3 10.5W N - 32° 927 - 2700K - 90 950 2570 CH - Chrome
S2MD12 3 10.5W N - 32° 927 - 2700K - 90 950 2570 GL - Gold
S2MD12 3 10.5W N - 32° 927 - 2700K - 90 950 2570 HZ - Haze
S2MD12 3 10.5W N - 32° 930 - 3000K - 90 1000 2710 BK - Black
S2MD12 3 10.5W N - 32° 930 - 3000K - 90 1000 2710 CH - Chrome
S2MD12 3 10.5W N - 32° 930 - 3000K - 90 1000 2710 GL - Gold
S2MD12 3 10.5W N - 32° 930 - 3000K - 90 1000 2710 HZ - Haze
S2MD12 3 10.5W N - 32° 935 - 3500K - 90 1050 2850 BK - Black
S2MD12 3 10.5W N - 32° 935 - 3500K - 90 1050 2850 CH - Chrome
S2MD12 3 10.5W N - 32° 935 - 3500K - 90 1050 2850 GL - Gold
S2MD12 3 10.5W N - 32° 935 - 3500K - 90 1050 2850 HZ - Haze
S2MD12 3 10.5W N - 32° 940 - 4000K - 90 1070 2900 BK - Black
S2MD12 3 10.5W N - 32° 940 - 4000K - 90 1070 2900 CH - Chrome
S2MD12 3 10.5W N - 32° 940 - 4000K - 90 1070 2900 GL - Gold
S2MD12 3 10.5W N - 32° 940 - 4000K - 90 1070 2900 HZ - Haze
S2MD12 3 10.5W S - 16° 927 - 2700K - 90 960 4870 BK - Black
S2MD12 3 10.5W S - 16° 927 - 2700K - 90 960 4870 CH - Chrome
S2MD12 3 10.5W S - 16° 927 - 2700K - 90 960 4870 GL - Gold
S2MD12 3 10.5W S - 16° 927 - 2700K - 90 960 4870 HZ - Haze
S2MD12 3 10.5W S - 16° 930 - 3000K - 90 1010 5130 BK - Black
S2MD12 3 10.5W S - 16° 930 - 3000K - 90 1010 5130 CH - Chrome
S2MD12 3 10.5W S - 16° 930 - 3000K - 90 1010 5130 GL - Gold
S2MD12 3 10.5W S - 16° 930 - 3000K - 90 1010 5130 HZ - Haze
S2MD12 3 10.5W S - 16° 935 - 3500K - 90 1060 5390 BK - Black
S2MD12 3 10.5W S - 16° 935 - 3500K - 90 1060 5390 CH - Chrome
S2MD12 3 10.5W S - 16° 935 - 3500K - 90 1060 5390 GL - Gold
S2MD12 3 10.5W S - 16° 935 - 3500K - 90 1060 5390 HZ - Haze
S2MD12 3 10.5W S - 16° 940 - 4000K - 90 1080 5490 BK - Black
S2MD12 3 10.5W S - 16° 940 - 4000K - 90 1080 5490 CH - Chrome
S2MD12 3 10.5W S - 16° 940 - 4000K - 90 1080 5490 GL - Gold
S2MD12 3 10.5W S - 16° 940 - 4000K - 90 1080 5490 HZ - Haze
S2MD24 1 10W F - 45° 927 - 2700K - 90 950 1610 BK - Black
S2MD24 1 10W F - 45° 927 - 2700K - 90 950 1610 CH - Chrome
S2MD24 1 10W F - 45° 927 - 2700K - 90 950 1610 GL - Gold
S2MD24 1 10W F - 45° 927 - 2700K - 90 950 1610 HZ - Haze
S2MD24 1 10W F - 45° 930 - 3000K - 90 1000 1690 BK - Black
S2MD24 1 10W F - 45° 930 - 3000K - 90 1000 1690 CH - Chrome
S2MD24 1 10W F - 45° 930 - 3000K - 90 1000 1690 GL - Gold
S2MD24 1 10W F - 45° 930 - 3000K - 90 1000 1690 HZ - Haze
S2MD24 1 10W F - 45° 935 - 3500K - 90 1050 1770 BK - Black
S2MD24 1 10W F - 45° 935 - 3500K - 90 1050 1770 CH - Chrome
S2MD24 1 10W F - 45° 935 - 3500K - 90 1050 1770 GL - Gold
S2MD24 1 10W F - 45° 935 - 3500K - 90 1050 1770 HZ - Haze
S2MD24 1 10W F - 45° 940 - 4000K - 90 1070 1810 BK - Black
S2MD24 1 10W F - 45° 940 - 4000K - 90 1070 1810 CH - Chrome
S2MD24 1 10W F - 45° 940 - 4000K - 90 1070 1810 GL - Gold
S2MD24 1 10W F - 45° 940 - 4000K - 90 1070 1810 HZ - Haze
S2MD24 1 10W N - 32° 927 - 2700K - 90 950 2270 BK - Black
S2MD24 1 10W N - 32° 927 - 2700K - 90 950 2270 CH - Chrome
S2MD24 1 10W N - 32° 927 - 2700K - 90 950 2270 GL - Gold
S2MD24 1 10W N - 32° 927 - 2700K - 90 950 2270 HZ - Haze
S2MD24 1 10W N - 32° 930 - 3000K - 90 1000 2390 BK - Black
S2MD24 1 10W N - 32° 930 - 3000K - 90 1000 2390 CH - Chrome
S2MD24 1 10W N - 32° 930 - 3000K - 90 1000 2390 GL - Gold
S2MD24 1 10W N - 32° 930 - 3000K - 90 1000 2390 HZ - Haze
S2MD24 1 10W N - 32° 935 - 3500K - 90 1050 2510 BK - Black
S2MD24 1 10W N - 32° 935 - 3500K - 90 1050 2510 CH - Chrome
S2MD24 1 10W N - 32° 935 - 3500K - 90 1050 2510 GL - Gold
S2MD24 1 10W N - 32° 935 - 3500K - 90 1050 2510 HZ - Haze
S2MD24 1 10W N - 32° 940 - 4000K - 90 1070 2560 BK - Black
S2MD24 1 10W N - 32° 940 - 4000K - 90 1070 2560 CH - Chrome
S2MD24 1 10W N - 32° 940 - 4000K - 90 1070 2560 GL - Gold
S2MD24 1 10W N - 32° 940 - 4000K - 90 1070 2560 HZ - Haze
S2MD24 1 10W S - 16° 927 - 2700K - 90 960 4810 BK - Black
S2MD24 1 10W S - 16° 927 - 2700K - 90 960 4810 CH - Chrome
S2MD24 1 10W S - 16° 927 - 2700K - 90 960 4810 GL - Gold
S2MD24 1 10W S - 16° 927 - 2700K - 90 960 4810 HZ - Haze
S2MD24 1 10W S - 16° 930 - 3000K - 90 1010 5060 BK - Black
S2MD24 1 10W S - 16° 930 - 3000K - 90 1010 5060 CH - Chrome
S2MD24 1 10W S - 16° 930 - 3000K - 90 1010 5060 GL - Gold
S2MD24 1 10W S - 16° 930 - 3000K - 90 1010 5060 HZ - Haze
S2MD24 1 10W S - 16° 935 - 3500K - 90 1060 5310 BK - Black
S2MD24 1 10W S - 16° 935 - 3500K - 90 1060 5310 CH - Chrome
S2MD24 1 10W S - 16° 935 - 3500K - 90 1060 5310 GL - Gold
S2MD24 1 10W S - 16° 935 - 3500K - 90 1060 5310 HZ - Haze
S2MD24 1 10W S - 16° 940 - 4000K - 90 1080 5410 BK - Black
S2MD24 1 10W S - 16° 940 - 4000K - 90 1080 5410 CH - Chrome
S2MD24 1 10W S - 16° 940 - 4000K - 90 1080 5410 GL - Gold
S2MD24 1 10W S - 16° 940 - 4000K - 90 1080 5410 HZ - Haze
S2MD24 2 15.5W F - 45° 927 - 2700K - 90 1480 2510 BK - Black
S2MD24 2 15.5W F - 45° 927 - 2700K - 90 1480 2510 CH - Chrome
S2MD24 2 15.5W F - 45° 927 - 2700K - 90 1480 2510 GL - Gold
S2MD24 2 15.5W F - 45° 927 - 2700K - 90 1480 2510 HZ - Haze
S2MD24 2 15.5W F - 45° 930 - 3000K - 90 1560 2640 BK - Black
S2MD24 2 15.5W F - 45° 930 - 3000K - 90 1560 2640 CH - Chrome
S2MD24 2 15.5W F - 45° 930 - 3000K - 90 1560 2640 GL - Gold
S2MD24 2 15.5W F - 45° 930 - 3000K - 90 1560 2640 HZ - Haze
S2MD24 2 15.5W F - 45° 935 - 3500K - 90 1640 2770 BK - Black
S2MD24 2 15.5W F - 45° 935 - 3500K - 90 1640 2770 CH - Chrome
S2MD24 2 15.5W F - 45° 935 - 3500K - 90 1640 2770 GL - Gold
S2MD24 2 15.5W F - 45° 935 - 3500K - 90 1640 2770 HZ - Haze
S2MD24 2 15.5W F - 45° 940 - 4000K - 90 1670 2820 BK - Black
S2MD24 2 15.5W F - 45° 940 - 4000K - 90 1670 2820 CH - Chrome
S2MD24 2 15.5W F - 45° 940 - 4000K - 90 1670 2820 GL - Gold
S2MD24 2 15.5W F - 45° 940 - 4000K - 90 1670 2820 HZ - Haze
S2MD24 2 15.5W N - 32° 927 - 2700K - 90 1480 3520 BK - Black
S2MD24 2 15.5W N - 32° 927 - 2700K - 90 1480 3520 CH - Chrome
S2MD24 2 15.5W N - 32° 927 - 2700K - 90 1480 3520 GL - Gold
S2MD24 2 15.5W N - 32° 927 - 2700K - 90 1480 3520 HZ - Haze
S2MD24 2 15.5W N - 32° 930 - 3000K - 90 1560 3700 BK - Black
S2MD24 2 15.5W N - 32° 930 - 3000K - 90 1560 3700 CH - Chrome
S2MD24 2 15.5W N - 32° 930 - 3000K - 90 1560 3700 GL - Gold
S2MD24 2 15.5W N - 32° 930 - 3000K - 90 1560 3700 HZ - Haze
S2MD24 2 15.5W N - 32° 935 - 3500K - 90 1640 3890 BK - Black
S2MD24 2 15.5W N - 32° 935 - 3500K - 90 1640 3890 CH - Chrome
S2MD24 2 15.5W N - 32° 935 - 3500K - 90 1640 3890 GL - Gold
S2MD24 2 15.5W N - 32° 935 - 3500K - 90 1640 3890 HZ - Haze
S2MD24 2 15.5W N - 32° 940 - 4000K - 90 1670 3960 BK - Black
S2MD24 2 15.5W N - 32° 940 - 4000K - 90 1670 3960 CH - Chrome
S2MD24 2 15.5W N - 32° 940 - 4000K - 90 1670 3960 GL - Gold
S2MD24 2 15.5W N - 32° 940 - 4000K - 90 1670 3960 HZ - Haze
S2MD24 2 15.5W S - 16° 927 - 2700K - 90 1470 6600 BK - Black
S2MD24 2 15.5W S - 16° 927 - 2700K - 90 1470 6600 CH - Chrome
S2MD24 2 15.5W S - 16° 927 - 2700K - 90 1470 6600 GL - Gold
S2MD24 2 15.5W S - 16° 927 - 2700K - 90 1470 6600 HZ - Haze
S2MD24 2 15.5W S - 16° 930 - 3000K - 90 1550 6950 BK - Black
S2MD24 2 15.5W S - 16° 930 - 3000K - 90 1550 6950 CH - Chrome
S2MD24 2 15.5W S - 16° 930 - 3000K - 90 1550 6950 GL - Gold
S2MD24 2 15.5W S - 16° 930 - 3000K - 90 1550 6950 HZ - Haze
S2MD24 2 15.5W S - 16° 935 - 3500K - 90 1630 7300 BK - Black
S2MD24 2 15.5W S - 16° 935 - 3500K - 90 1630 7300 CH - Chrome
S2MD24 2 15.5W S - 16° 935 - 3500K - 90 1630 7300 GL - Gold
S2MD24 2 15.5W S - 16° 935 - 3500K - 90 1630 7300 HZ - Haze
S2MD24 2 15.5W S - 16° 940 - 4000K - 90 1660 7440 BK - Black
S2MD24 2 15.5W S - 16° 940 - 4000K - 90 1660 7440 CH - Chrome
S2MD24 2 15.5W S - 16° 940 - 4000K - 90 1660 7440 GL - Gold
S2MD24 2 15.5W S - 16° 940 - 4000K - 90 1660 7440 HZ - Haze
S2MD24 3 21.5W F - 45° 927 - 2700K - 90 1920 3420 BK - Black
S2MD24 3 21.5W F - 45° 927 - 2700K - 90 1920 3420 CH - Chrome
S2MD24 3 21.5W F - 45° 927 - 2700K - 90 1920 3420 GL - Gold
S2MD24 3 21.5W F - 45° 927 - 2700K - 90 1920 3420 HZ - Haze
S2MD24 3 21.5W F - 45° 930 - 3000K - 90 2020 3600 BK - Black
S2MD24 3 21.5W F - 45° 930 - 3000K - 90 2020 3600 CH - Chrome
S2MD24 3 21.5W F - 45° 930 - 3000K - 90 2020 3600 GL - Gold
S2MD24 3 21.5W F - 45° 930 - 3000K - 90 2020 3600 HZ - Haze
S2MD24 3 21.5W F - 45° 935 - 3500K - 90 2120 3780 BK - Black
S2MD24 3 21.5W F - 45° 935 - 3500K - 90 2120 3780 CH - Chrome
S2MD24 3 21.5W F - 45° 935 - 3500K - 90 2120 3780 GL - Gold
S2MD24 3 21.5W F - 45° 935 - 3500K - 90 2120 3780 HZ - Haze
S2MD24 3 21.5W F - 45° 940 - 4000K - 90 2160 3850 BK - Black
S2MD24 3 21.5W F - 45° 940 - 4000K - 90 2160 3850 CH - Chrome
S2MD24 3 21.5W F - 45° 940 - 4000K - 90 2160 3850 GL - Gold
S2MD24 3 21.5W F - 45° 940 - 4000K - 90 2160 3850 HZ - Haze
S2MD24 3 21.5W N - 32° 927 - 2700K - 90 1950 5000 BK - Black
S2MD24 3 21.5W N - 32° 927 - 2700K - 90 1950 5000 CH - Chrome
S2MD24 3 21.5W N - 32° 927 - 2700K - 90 1950 5000 GL - Gold
S2MD24 3 21.5W N - 32° 927 - 2700K - 90 1950 5000 HZ - Haze
S2MD24 3 21.5W N - 32° 930 - 3000K - 90 2050 5260 BK - Black
S2MD24 3 21.5W N - 32° 930 - 3000K - 90 2050 5260 CH - Chrome
S2MD24 3 21.5W N - 32° 930 - 3000K - 90 2050 5260 GL - Gold
S2MD24 3 21.5W N - 32° 930 - 3000K - 90 2050 5260 HZ - Haze
S2MD24 3 21.5W N - 32° 935 - 3500K - 90 2150 5520 BK - Black
S2MD24 3 21.5W N - 32° 935 - 3500K - 90 2150 5520 CH - Chrome
S2MD24 3 21.5W N - 32° 935 - 3500K - 90 2150 5520 GL - Gold
S2MD24 3 21.5W N - 32° 935 - 3500K - 90 2150 5520 HZ - Haze
S2MD24 3 21.5W N - 32° 940 - 4000K - 90 2190 5630 BK - Black
S2MD24 3 21.5W N - 32° 940 - 4000K - 90 2190 5630 CH - Chrome
S2MD24 3 21.5W N - 32° 940 - 4000K - 90 2190 5630 GL - Gold
S2MD24 3 21.5W N - 32° 940 - 4000K - 90 2190 5630 HZ - Haze
S2MD24 3 21.5W S - 16° 927 - 2700K - 90 1840 8830 BK - Black
S2MD24 3 21.5W S - 16° 927 - 2700K - 90 1840 8830 CH - Chrome
S2MD24 3 21.5W S - 16° 927 - 2700K - 90 1840 8830 GL - Gold
S2MD24 3 21.5W S - 16° 927 - 2700K - 90 1840 8830 HZ - Haze
S2MD24 3 21.5W S - 16° 930 - 3000K - 90 1940 9290 BK - Black
S2MD24 3 21.5W S - 16° 930 - 3000K - 90 1940 9290 CH - Chrome
S2MD24 3 21.5W S - 16° 930 - 3000K - 90 1940 9290 GL - Gold
S2MD24 3 21.5W S - 16° 930 - 3000K - 90 1940 9290 HZ - Haze
S2MD24 3 21.5W S - 16° 935 - 3500K - 90 2040 9750 BK - Black
S2MD24 3 21.5W S - 16° 935 - 3500K - 90 2040 9750 CH - Chrome
S2MD24 3 21.5W S - 16° 935 - 3500K - 90 2040 9750 GL - Gold
S2MD24 3 21.5W S - 16° 935 - 3500K - 90 2040 9750 HZ - Haze
S2MD24 3 21.5W S - 16° 940 - 4000K - 90 2080 9940 BK - Black
S2MD24 3 21.5W S - 16° 940 - 4000K - 90 2080 9940 CH - Chrome
S2MD24 3 21.5W S - 16° 940 - 4000K - 90 2080 9940 GL - Gold
S2MD24 3 21.5W S - 16° 940 - 4000K - 90 2080 9940 HZ - Haze

Features

  • Delivered Lumens: Up to 2190lm
  • CBCP: Up to 9940
  • 3500K
    3000K
    2700K
    4000K
    3500K, 3000K, 2700K, 4000K
  • 2700K, 3000K, 3500K, 4000K
  • CRI: 90
  • Power: 10.5W, 10W, 15.5W, 21.5W, 3.5W, 5.5W, 5W, 6W, 8W
  • Input: 48 VDC
  • ELV Dimming: 100-0.1%
  • 0-10V Dimming: 100-0.1%
  • TRIAC Dimming: 100-0.1%
  • Rated Life: 50000 Hours
  • Construction: Extruded aluminum with injection molded low glare trim
  • Three power levels for precision output
  • Low glare multi-cell trim with 40° cutoff angle
  • Interchangeable trim available in 4 finishes
  • May be installed side by side for seamless appearance
  • To enable access to STRUT element releasing tabs, maintain at least 3” of free channel space
  • Driver concealed within the fixture
  • Can be mounted on ceiling or wall vertically or horizontally

Line Drawing
