Specifications
Order Number:
| model & size | color temp & cri | finish | watt | led lumens | delivered lumens | title 24 |
|---|---|---|---|---|---|---|
| PD-22744 - 44" | 3000K - 90 | AL - Brushed Aluminum | 24W | 1299 | 1034 | YES |
| PD-22744 - 44" | 3000K - 90 | BK - Black | 24W | 1299 | 1034 | YES |
| PD-22754 - 54" | 3000K - 90 | AL - Brushed Aluminum | 30W | 2150 | 1740 | YES |
| PD-22754 - 54" | 3000K - 90 | BK - Black | 30W | 2150 | 1740 | YES |
| PD-22775 - 75" | 3000K - 90 | AL - Brushed Aluminum | 44W | 2671 | 1888 | YES |
| PD-22775 - 75" | 3000K - 90 | BK - Black | 44W | 2671 | 1888 | YES |
Features
- Delivered Lumens: 1888lm
- 3000K
- CRI: 90
- Power: 24W, 30W, 44W
- Input: 120-277 VAC, 50/60Hz
- ELV Dimming: 100-10%
- 0-10V Dimming: 100-5%
- TRIAC Dimming: 100-5%
- Rated Life: 54000 Hours
- Construction: Aluminum hardware with polycarbonate diffuser
- Ultra thin pendant for the discerning minimalist
- Frosted diffuser provides even illumination
- Cable suspension carrying low voltage may be field shortened
- 0-10V dimming not available for PD-22775

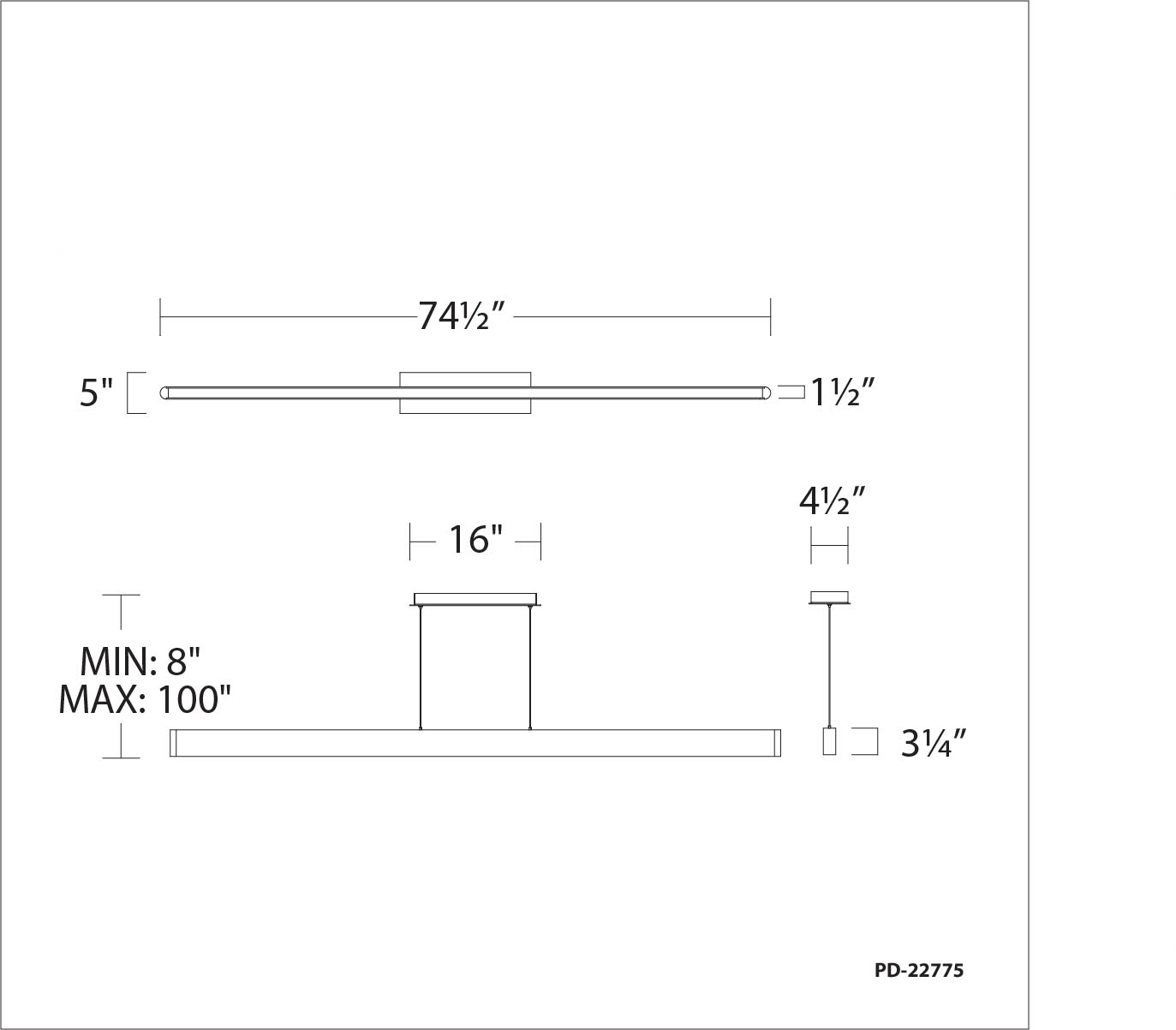

Line Drawing
