Specifications
Order Number:
| model & size | color temp | finish | led watts | led lumens | delivered lumens |
|---|---|---|---|---|---|
| WS-87117 - 17" | 3000K | CH - Chrome | 15W | 544 | 332 |
| WS-87128 - 28" | 3000K | CH - Chrome | 30W | 1060 | 769 |
Features
- Delivered Lumens: 769lm
- 3000K
- CRI: 90
- Power: 15W, 30W
- Input: 120/277V, 50/60Hz
- ELV Dimming: 100-10%
- TRIAC Dimming: 100-10%
- Rated Life: 50000 Hours
- Construction: Aluminum body, acrylic diffuser
- Edge lit v-groove twist acrylic diffuser
- Backlight with recessed silicone diffuser
- Oval canopy
- Conversion plate included to accommodate 4" junction box
- Trimless spackle cover available for 4" square junction box recessed in drywall thicknesses of 1/2", 5/8", 1", and 1-1/4"; accessory not included and can be ordered separately (model# CP-TL-WT)
- Driver concealed within the canopy
- Can be mounted on wall in all orientations
Gallery

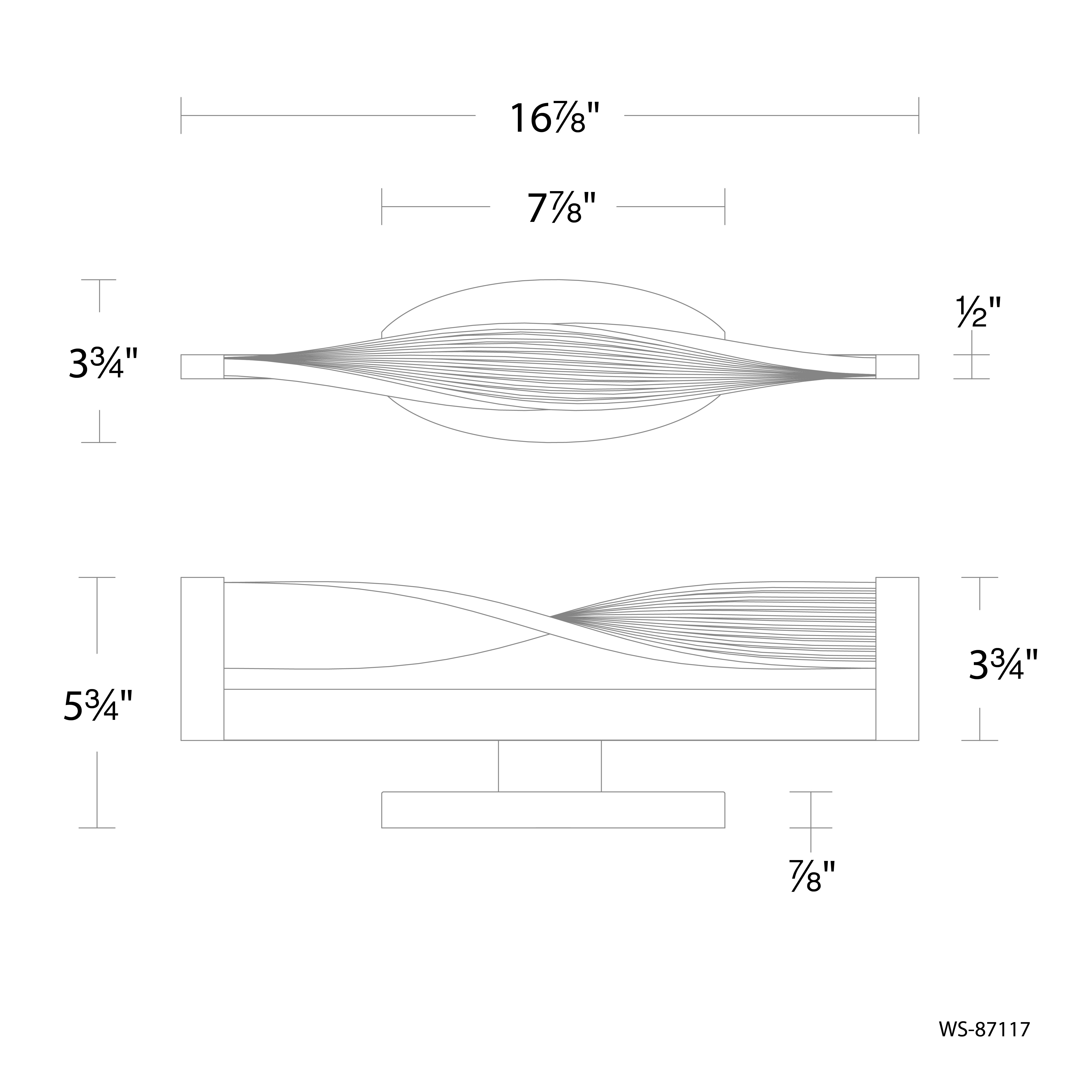

Line Drawing
