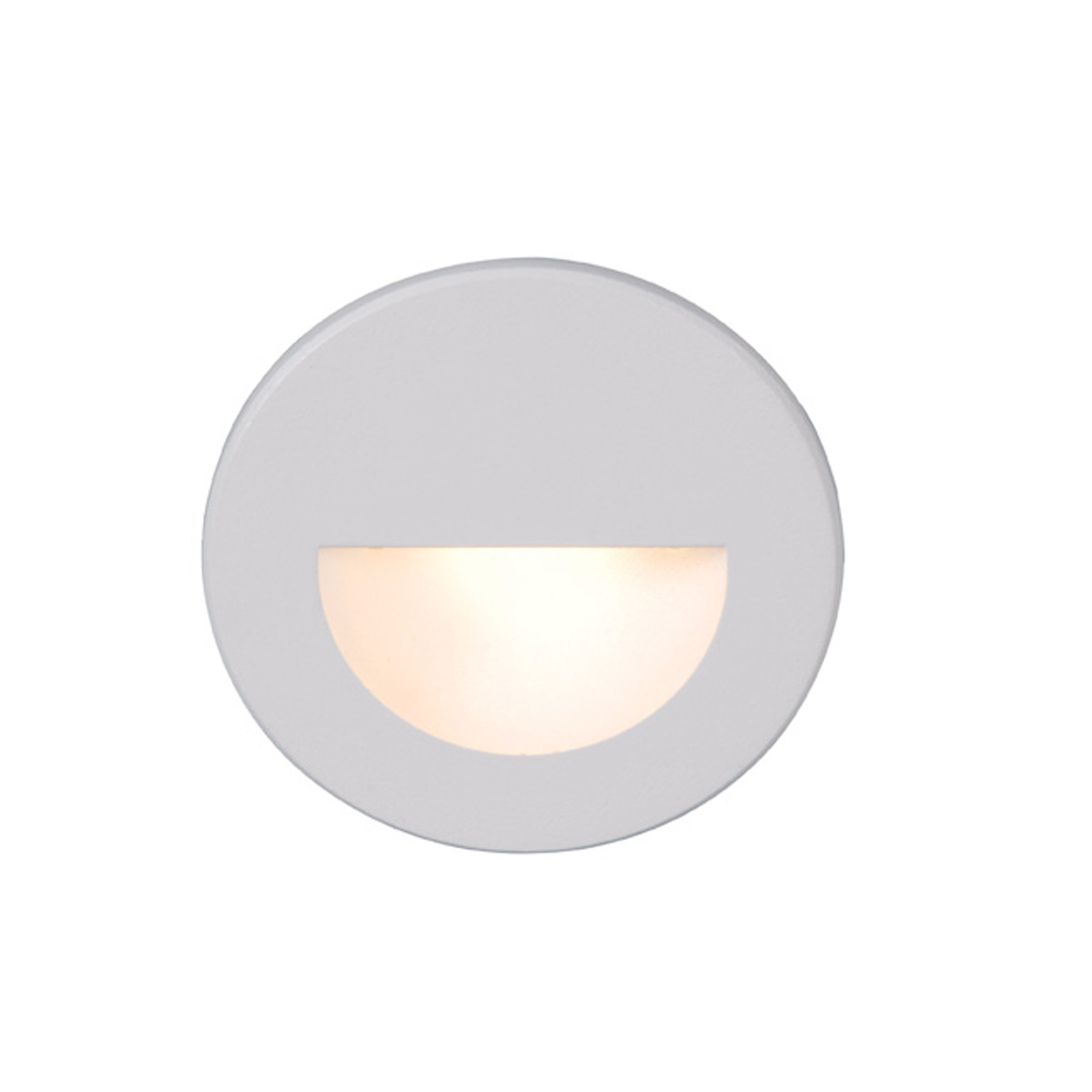

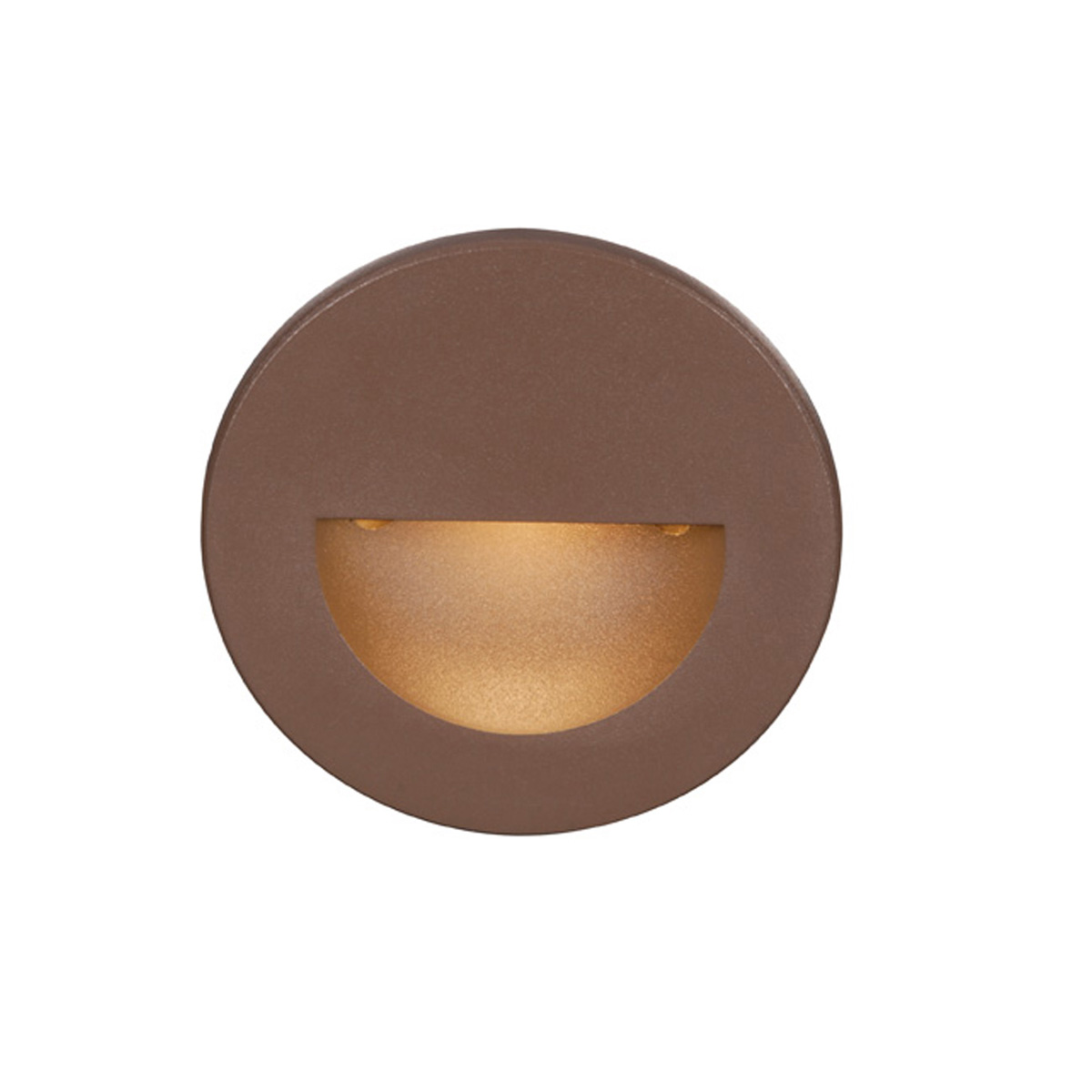

WL-LED300 Step And Wall Light

Specifications

Order Number:
model & voltage color temp & cri lumens finish
WL-LED300 - 120 VAC Amber - 90 74 BN - Brushed Nickel
WL-LED300 - 120 VAC Amber - 90 74 BZ - Bronze on Aluminum
WL-LED300 - 120 VAC Amber - 90 74 WT - White on Aluminum
WL-LED300 - 120 VAC Blue - 90 74 BN - Brushed Nickel
WL-LED300 - 120 VAC Blue - 90 74 BZ - Bronze on Aluminum
WL-LED300 - 120 VAC Blue - 90 74 WT - White on Aluminum
WL-LED300 - 120 VAC 3000K - 90 74 BN - Brushed Nickel
WL-LED300 - 120 VAC 3000K - 90 74 BZ - Bronze on Aluminum
WL-LED300 - 120 VAC 3000K - 90 74 WT - White on Aluminum
WL-LED300 - 120 VAC Red - 90 74 BN - Brushed Nickel
WL-LED300 - 120 VAC Red - 90 74 BZ - Bronze on Aluminum
WL-LED300 - 120 VAC Red - 90 74 WT - White on Aluminum

Features

  • Delivered Lumens: 74lm
  • Red
    3000K
    Blue
    Amber
    Red, 3000K, Blue, Amber
  • 3000K, Amber, Blue, Red
  • CRI: 90
  • Power: 3.9W
  • Input: 120 VAC, 50/60Hz
  • ELV Dimming: 100-10%
  • Rated Life: 50000 Hours
  • Construction: Die-cast aluminum
  • Low profile, flush to wall aesthetics with no visible hardware
  • Balanced lighting, free of shadows with minimum glare
  • Up to 200 fixtures can be connected in parallel

Line Drawing
